Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0601 - C0700
>>

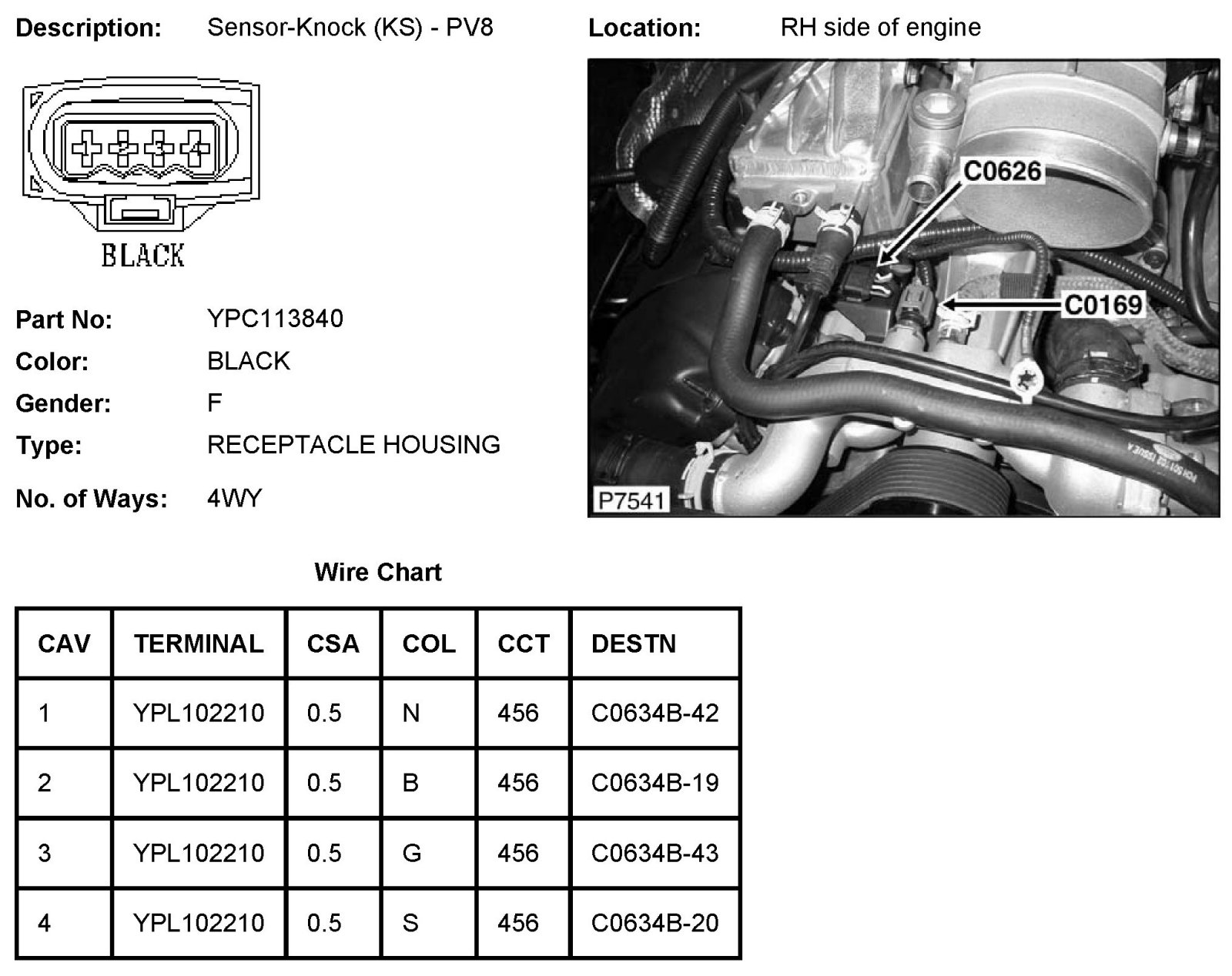

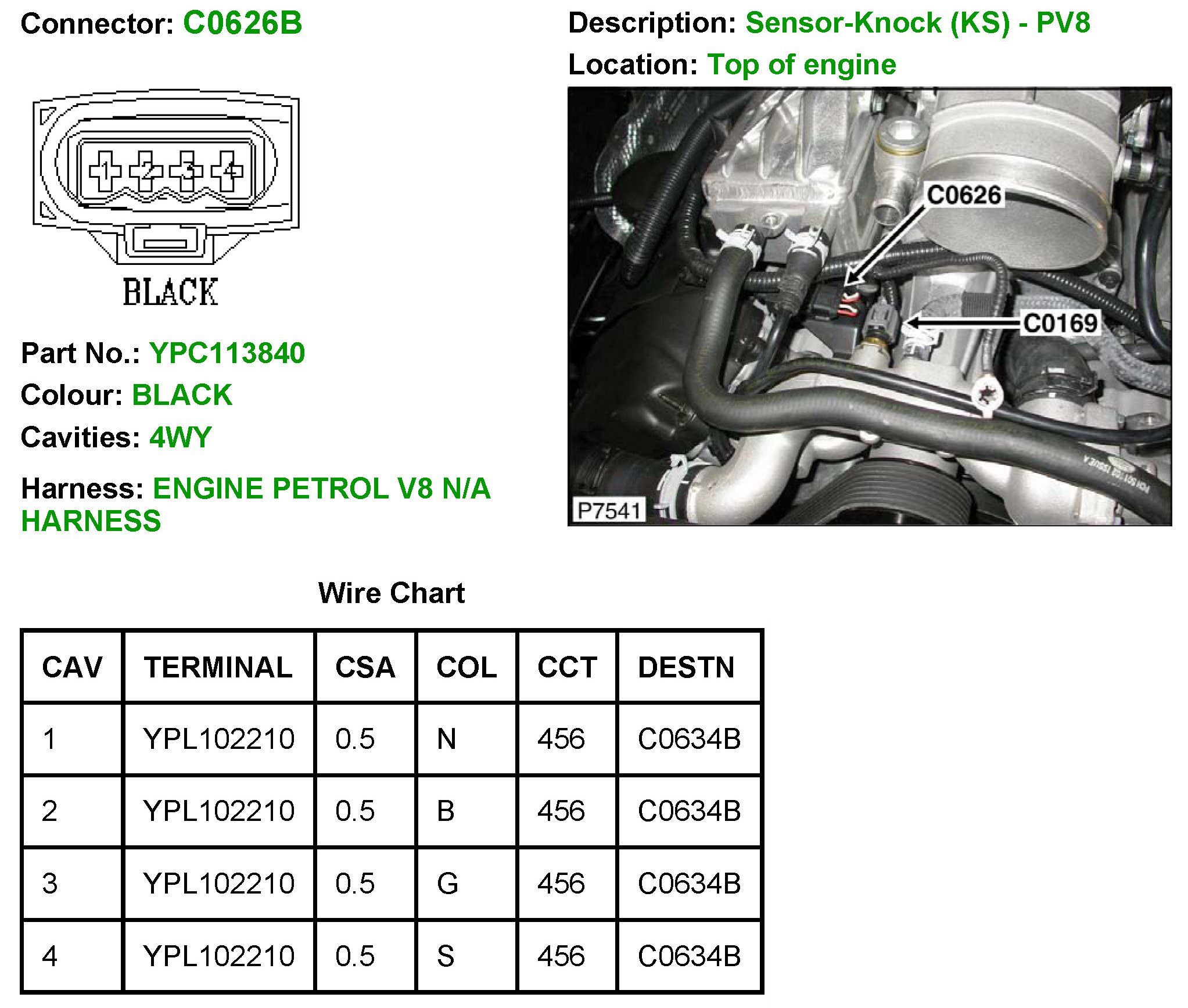

C0626B
C0626B
C0626B:
C0626B:
