Home
>>
Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0501 - C0600
>>

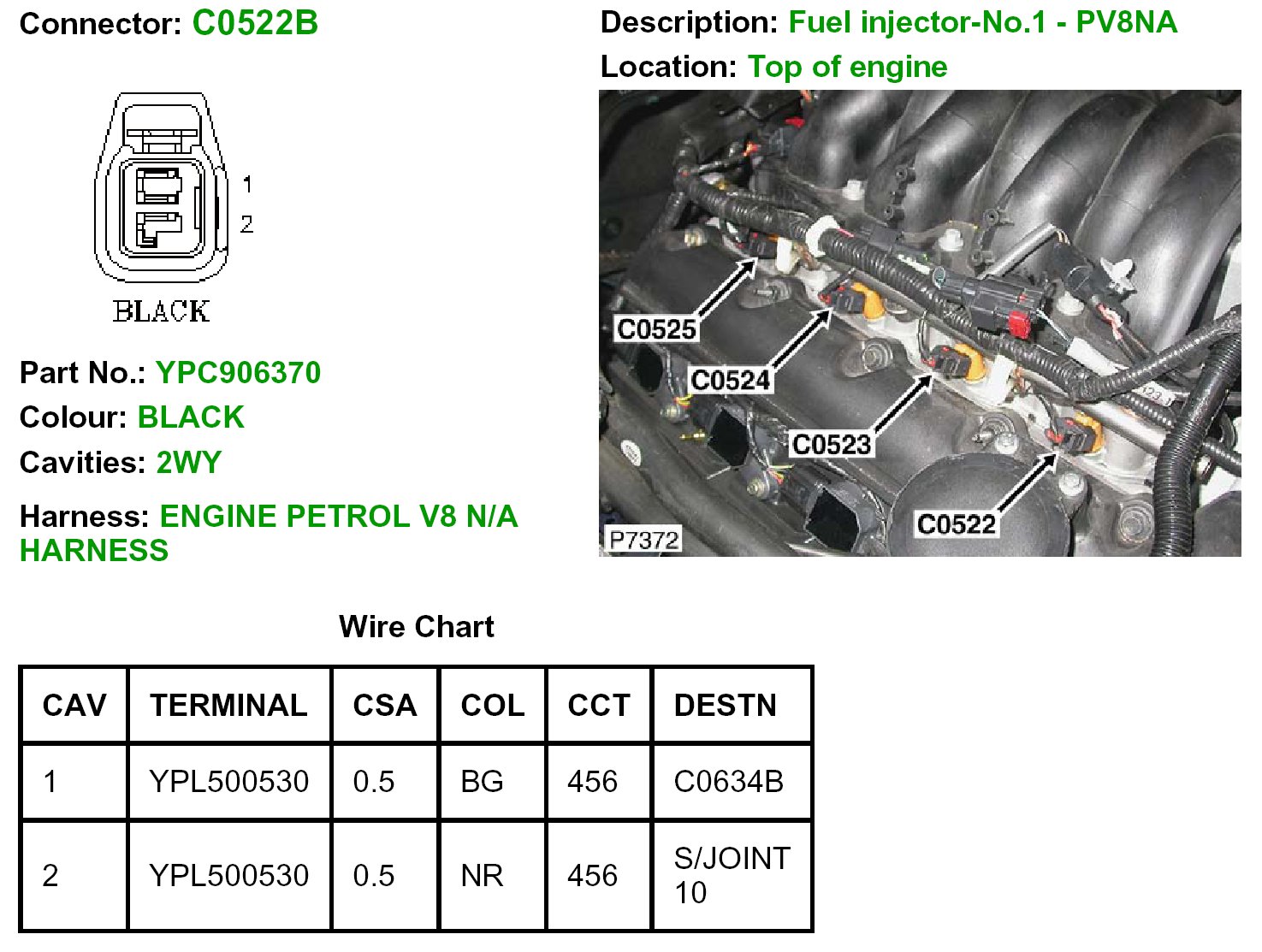

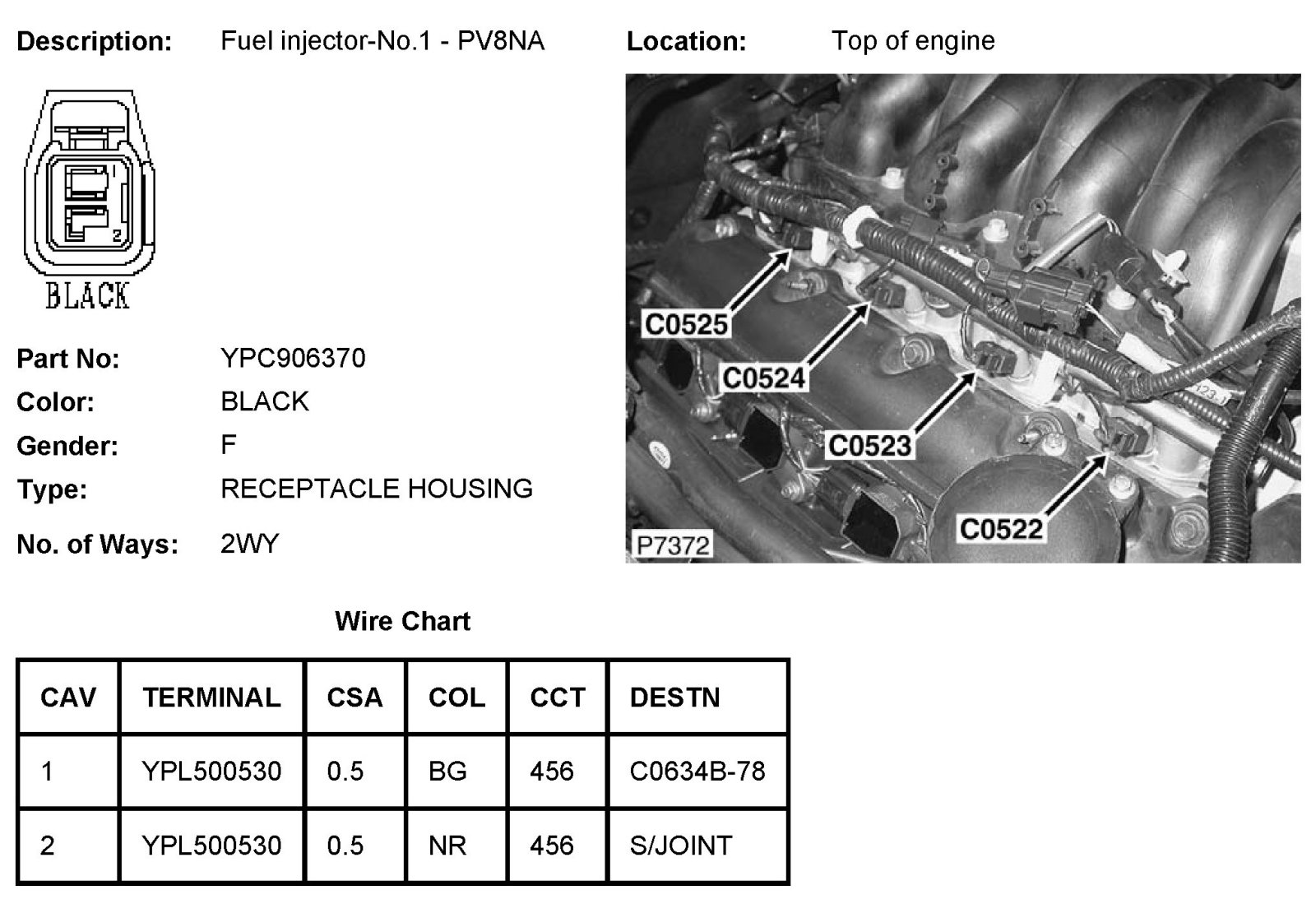

C0522B
C0522B
C0522B:
C0522B:
