LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0301 - C0400
>>

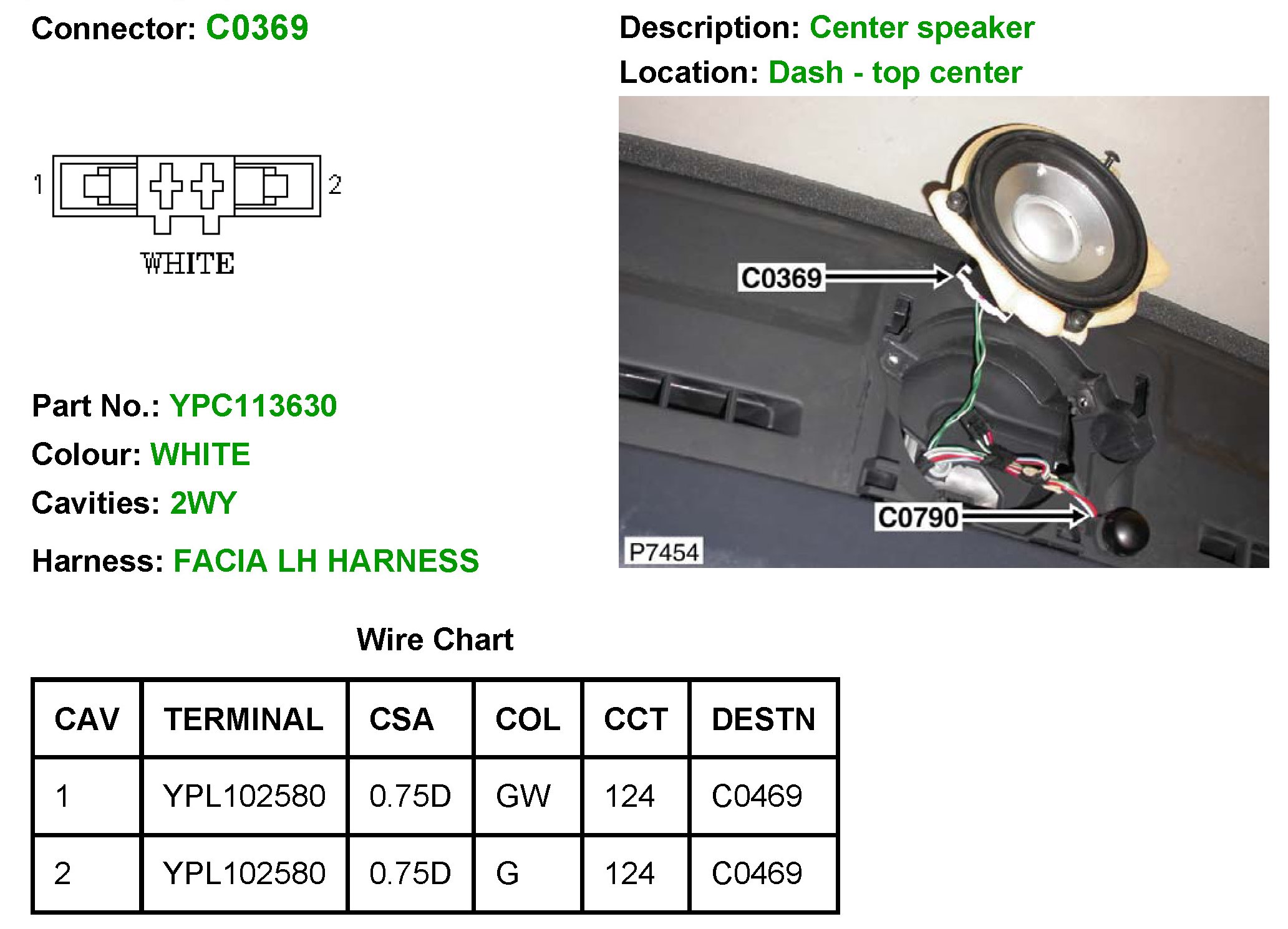

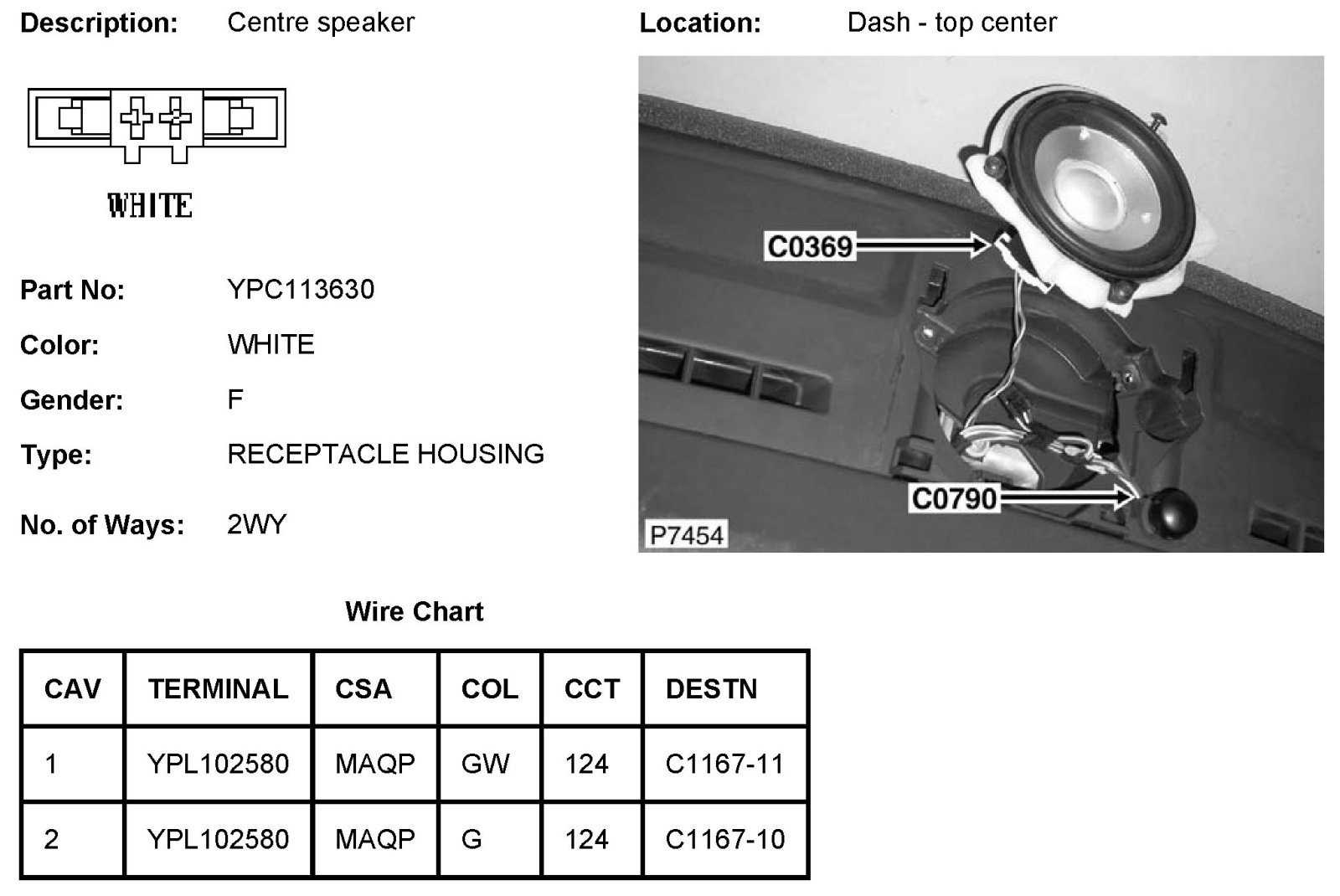

C0369
C0369
C0369:
C0369:
