Home
>>
Land Rover
>>
2007
>>
LR3 (LA) V8-4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0001 - C0100
>>

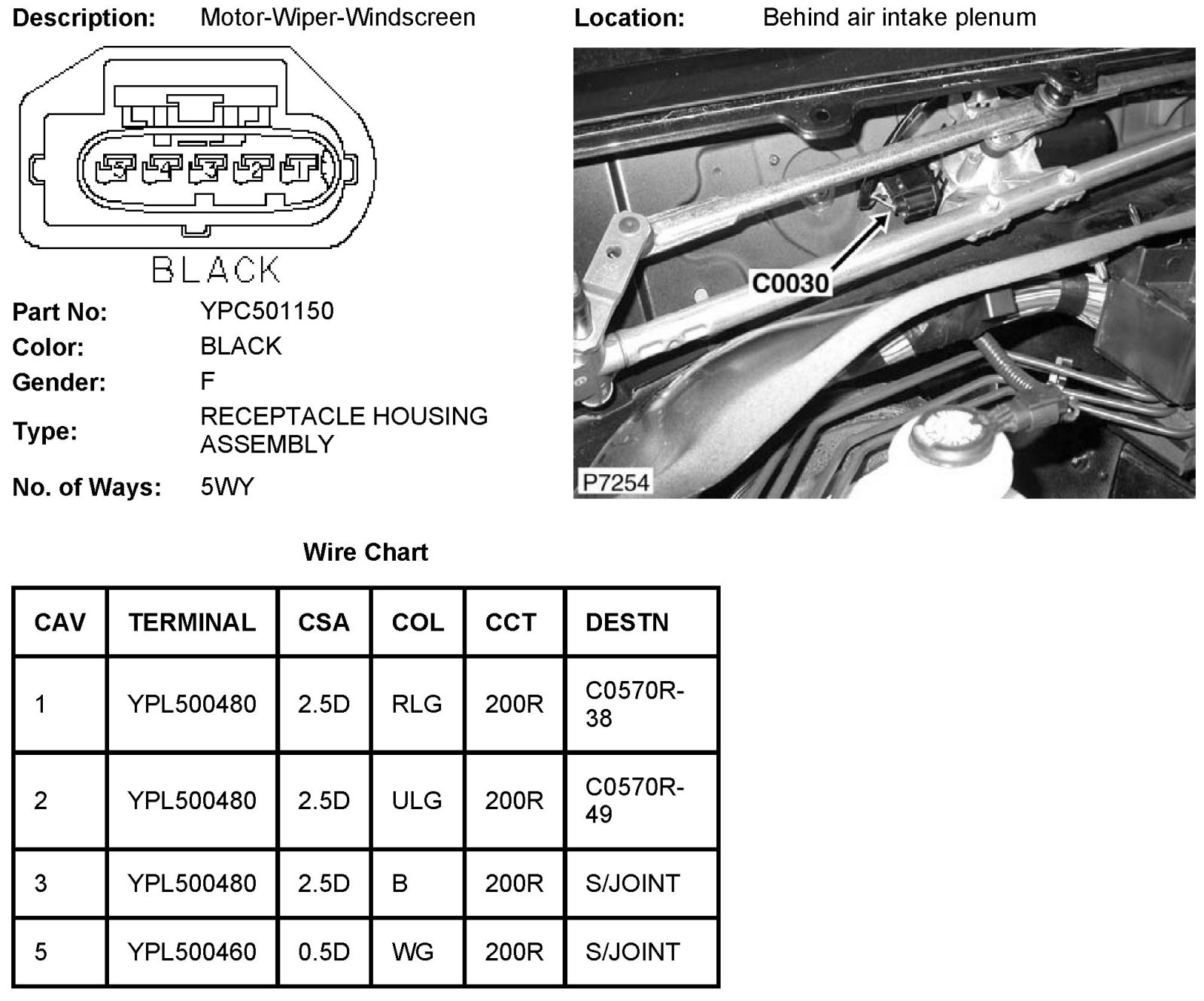

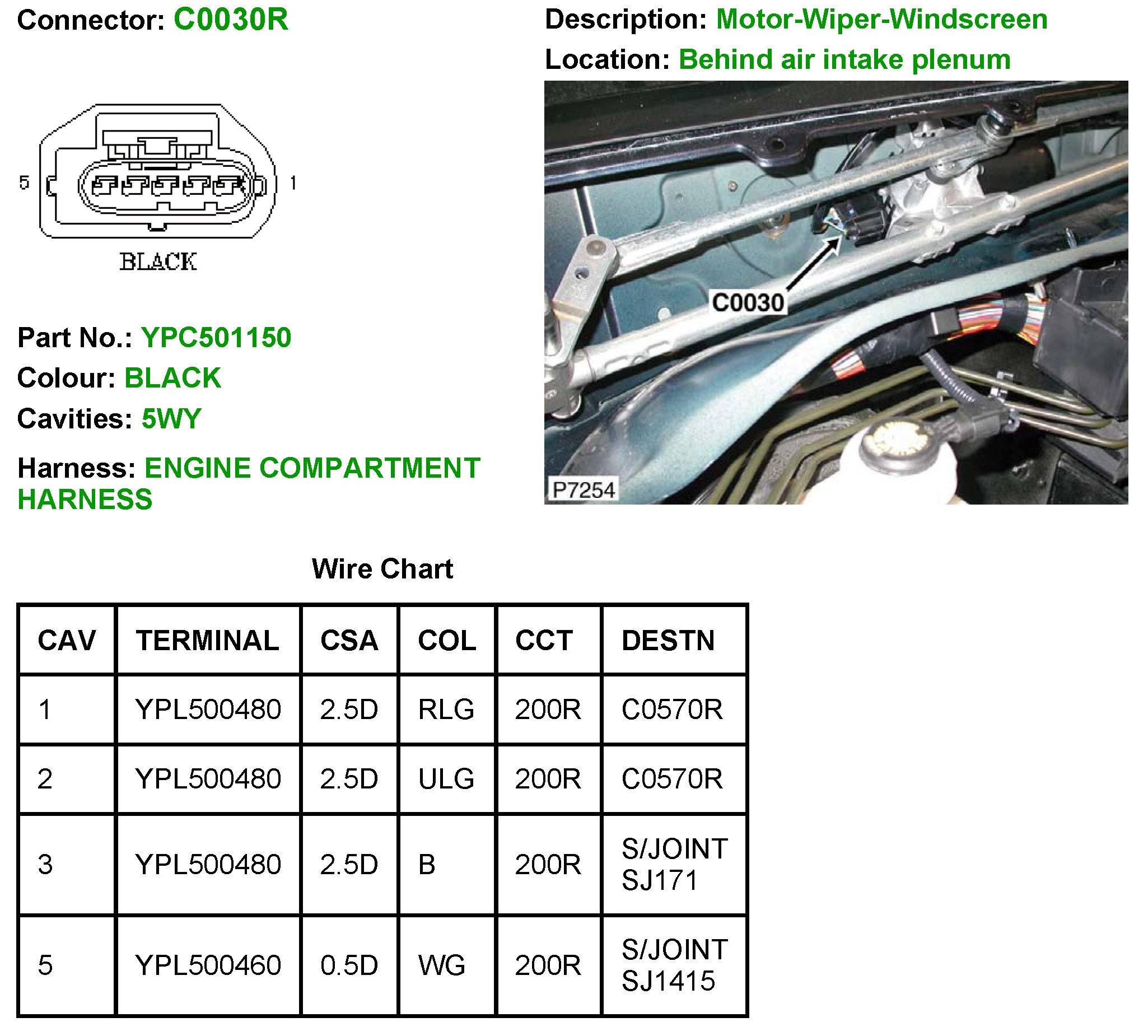

C0030R
C0030R
C0030R:
C0030R:
