Vacuum Brake Booster: Description and Operation

Brake Booster

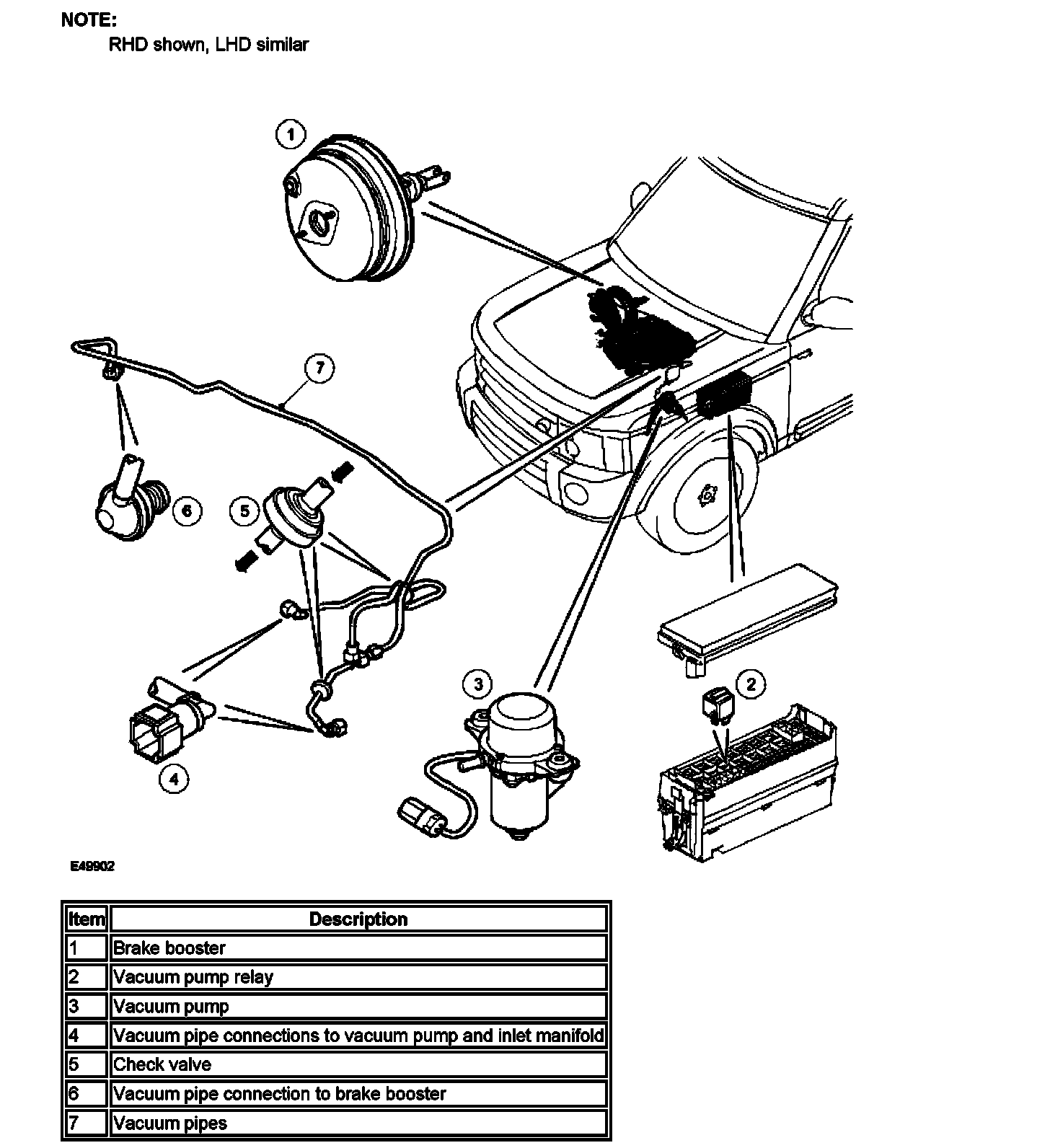

Component Locations - 4.0L





NOTE: RHD shown, LHD similar

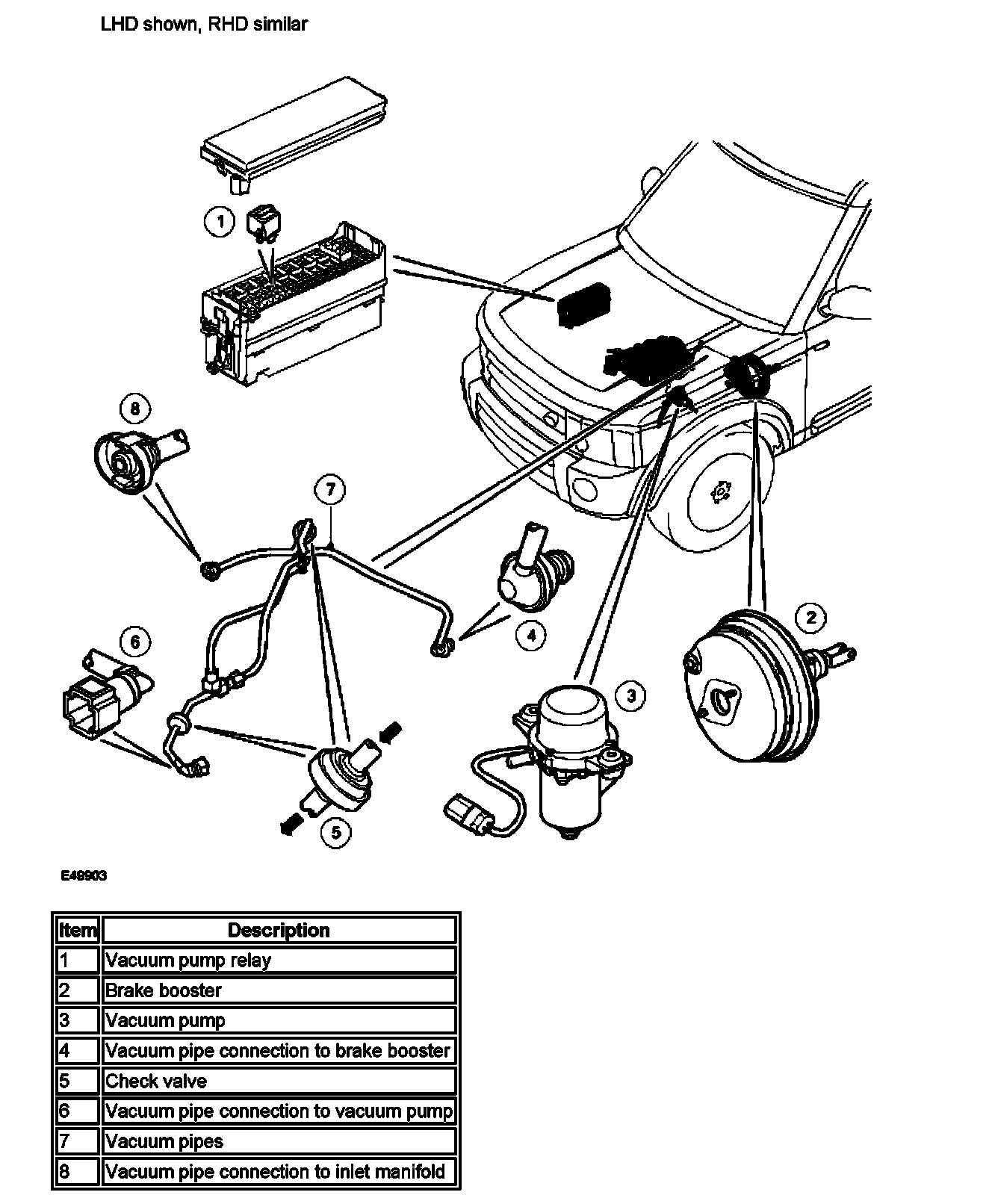

Component Locations - 4.4L





NOTE: LHD shown, RHD similar

General
Power assistance for the brakes is provided by a vacuum operated brake booster. On petrol models, the vacuum is produced by the intake manifold and an electric vacuum pump. On diesel models, the vacuum is produced by an engine driven vacuum pump.

Vacuum Pipes
Plastic vacuum pipes connect the brake booster to the vacuum source. Check valves are incorporated into the vacuum pipes. On petrol models there are two in-line check valves, to maintain the vacuum in the brake booster when the throttle is open and the vacuum pump is not running, and prevent fuel vapor entering the brake booster. On diesel models there is a single check valve integrated into the vacuum pipe connection with the brake booster, to maintain the vacuum in the brake booster when the vacuum pump is operating at less than the optimum.

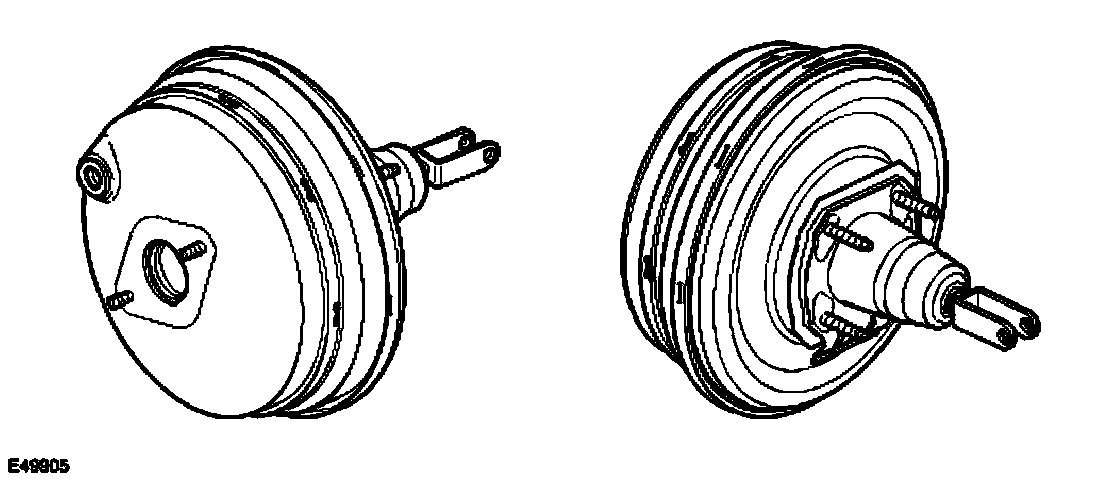

Brake Booster





The brake booster is installed in the driver side of the engine compartment, on the engine bulkhead. The brake booster is a dual diaphragm unit with a boost ratio of 7.0:1. The input push rod is connected to the brake pedal. The output push rod locates in the primary piston of the brake master cylinder. A vacuum pipe, installed in a grommet in the front face of the housing, connects the brake booster to the intake manifold and electric vacuum pump (petrol models) or the engine driven vacuum pump (diesel models).

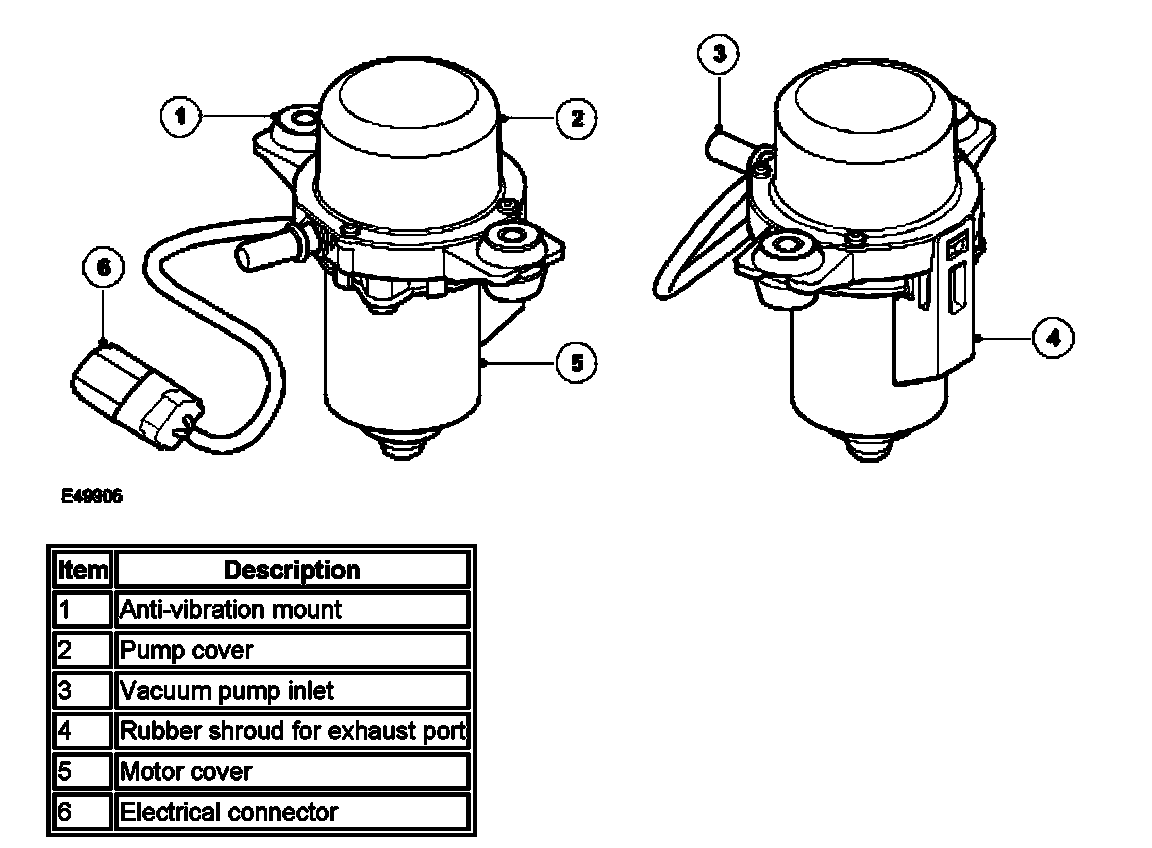

Vacuum Pump (4.0L And 4.4L)





On petrol models the electric vacuum pump supplements the main vacuum supply from the engine manifold.

The vacuum pump is installed on a mounting bracket in the front left corner of the engine compartment. Two anti-vibration mounts on the vacuum pump are located on studs on the mounting bracket and secured with nuts.

The vacuum pump consists of a radial vane pump driven by an electric motor. The rotor and vanes of the pump are made from a self-lubricating carbon based material. A stub pipe is installed in the inlet of the pump to provide a connection point for the vacuum pipe from the brake booster. A second stub pipe, which is covered by a rubber shroud, is installed in the outlet from the pump.

Operation of the vacuum pump is controlled by the Engine Control Module (ECM), which uses the brake vacuum pump relay in the Battery Junction Box (BJB) to switch power to the vacuum pump. The ECM controls the time for which the vacuum pump is switched on and has in-built safeguards to protect the pump from overuse, e.g. continuous running is not allowed so a minimum delay time is specified between applications.

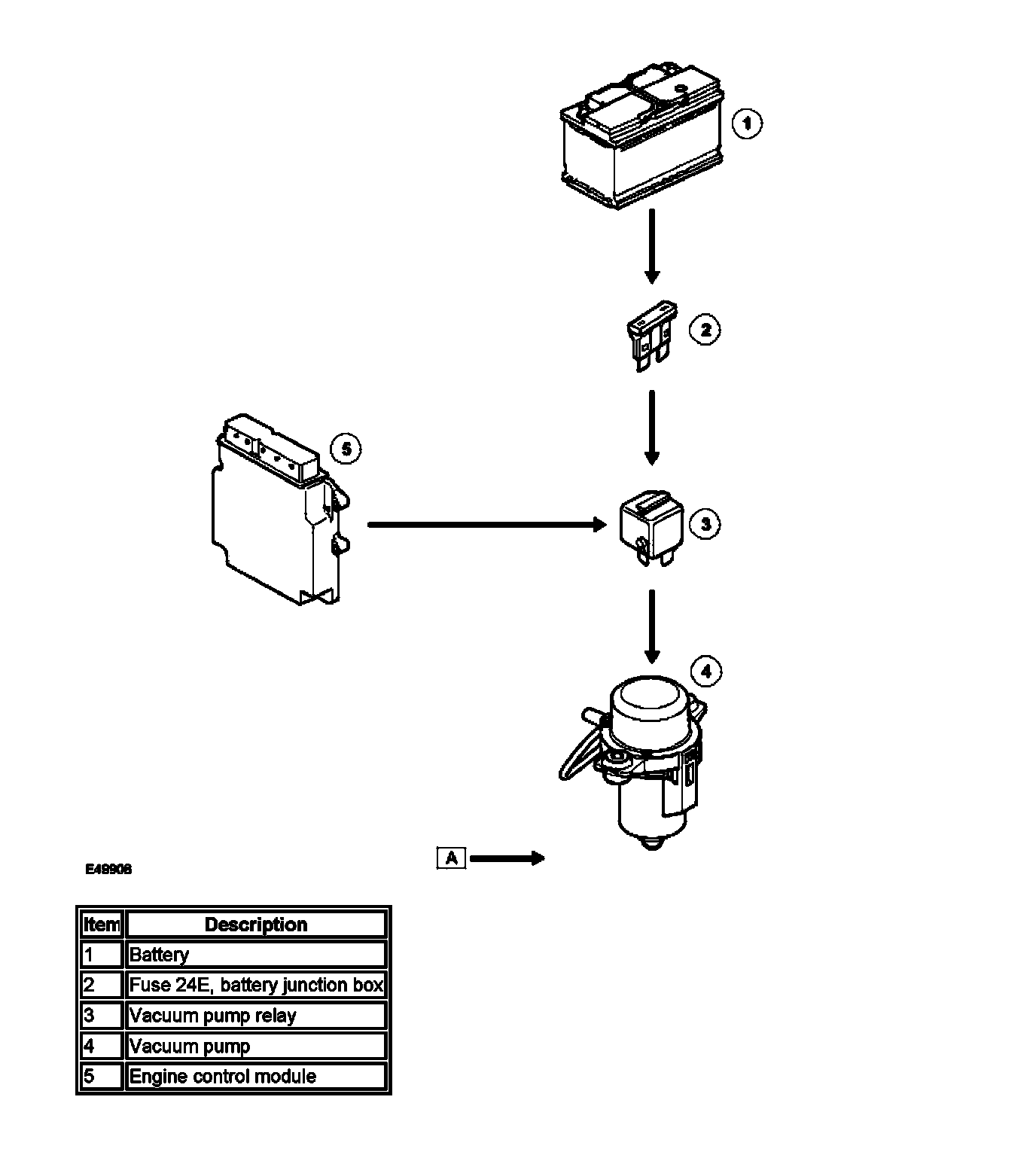

Vacuum Pump Control Diagram (4.0L AND 4.4L)





NOTE: A = Hardwired connection
