Low Line Audio System

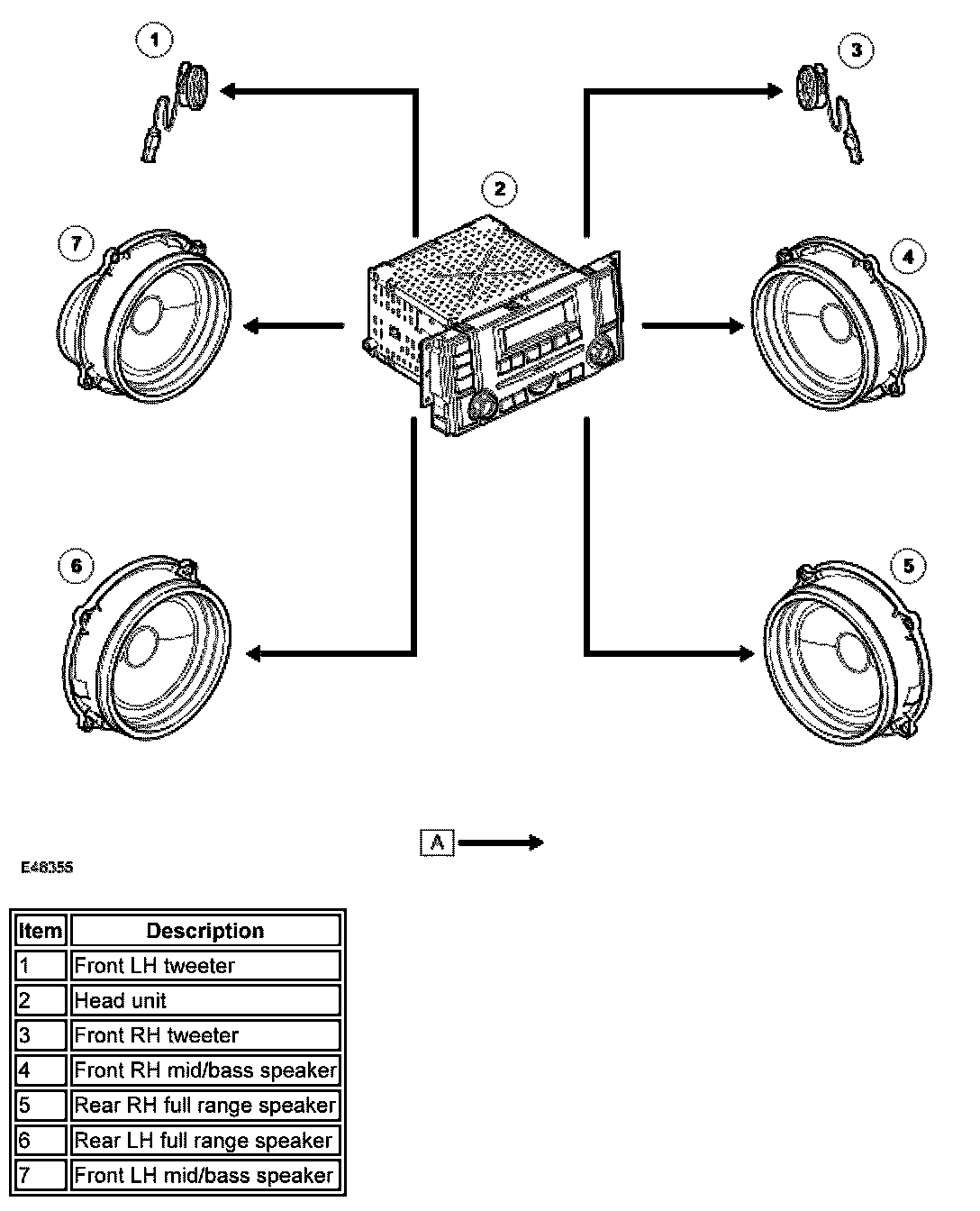

Low Line Audio System Speaker Control Diagram

NOTE: A= Hardwired





The low line audio speaker system is driven directly from the audio head unit.The system comprises:
^ Head unit
^ Two front door mounted mid/bass speakers (one per side)
^ Two front door mounted tweeters (one per side)
^ Two rear door mounted full range speakers (one per side)
