Range Rover (LM) V8-4394cc 4.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0301 - C0400
>>
C0331
C0331

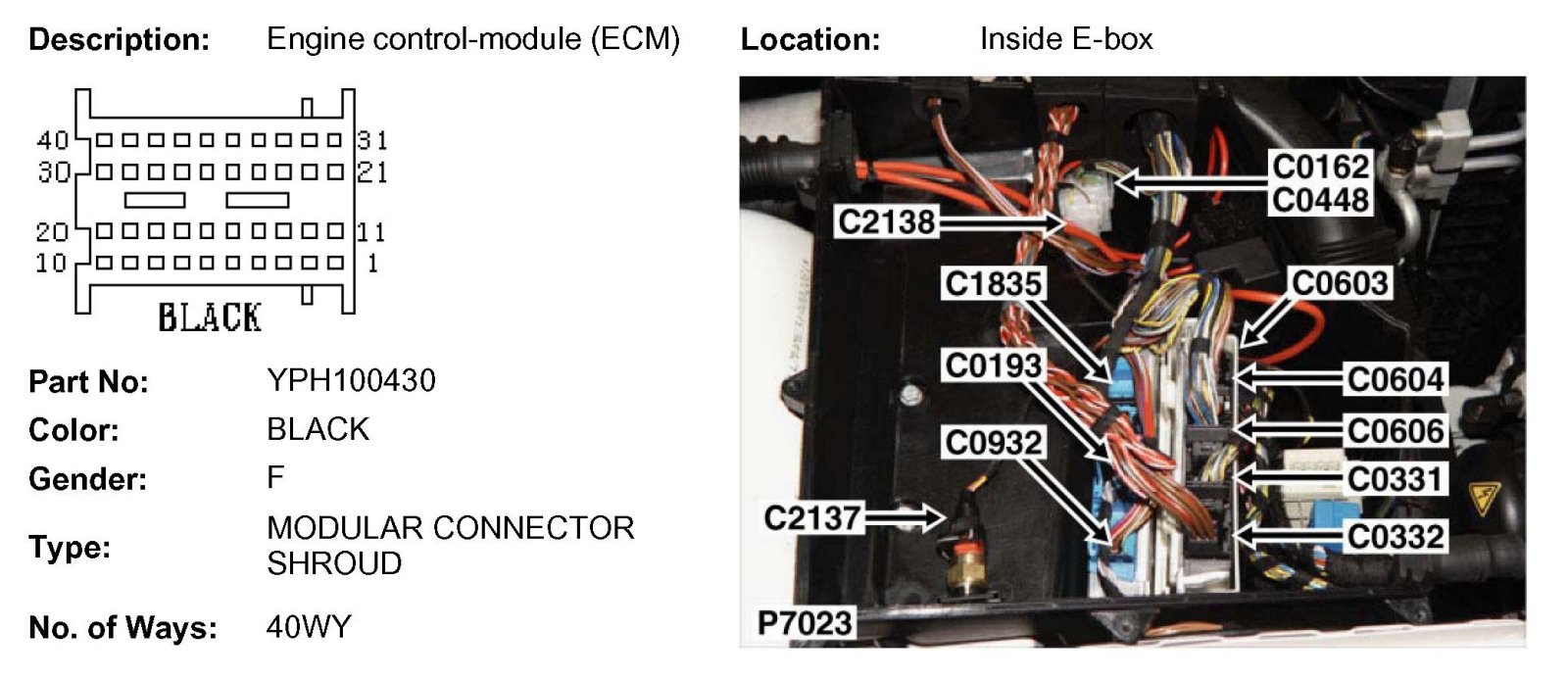

C0331 (Part 1):

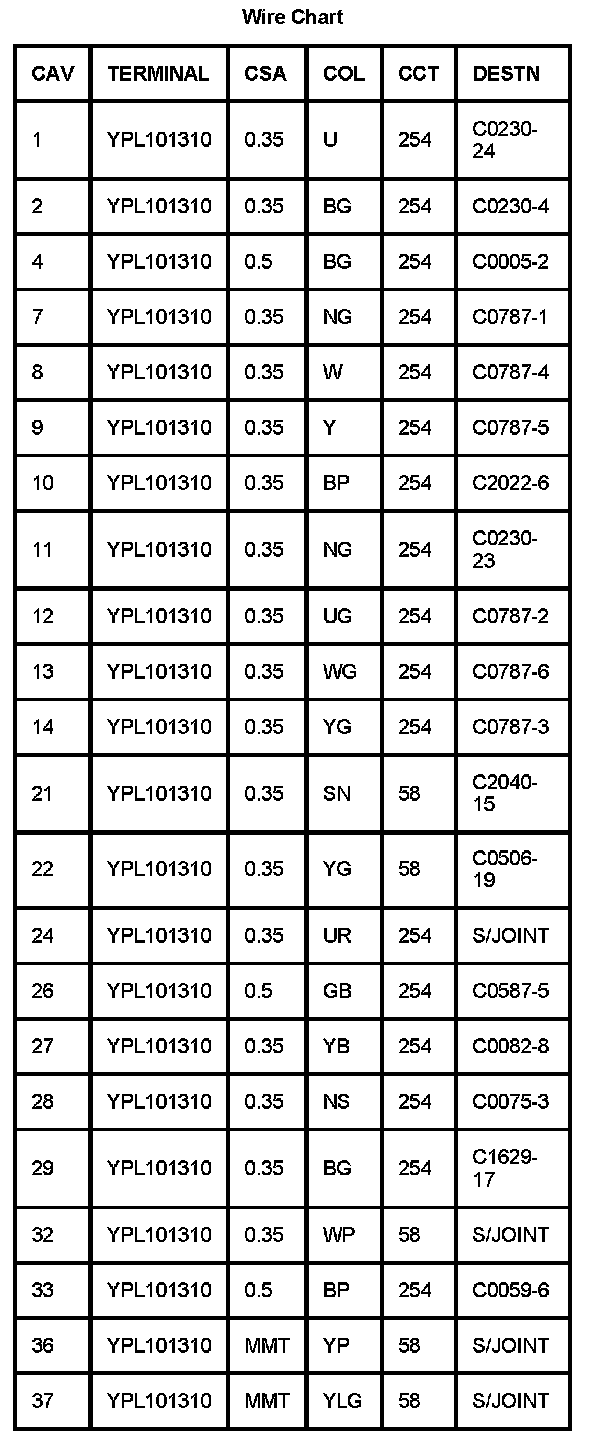

C0331 (Part 2):
