Rear Suspension

64.35.08 Anti-roll bar
Do not depressurize air suspension system before raising vehicle

Remove





1. Remove exhaust system.

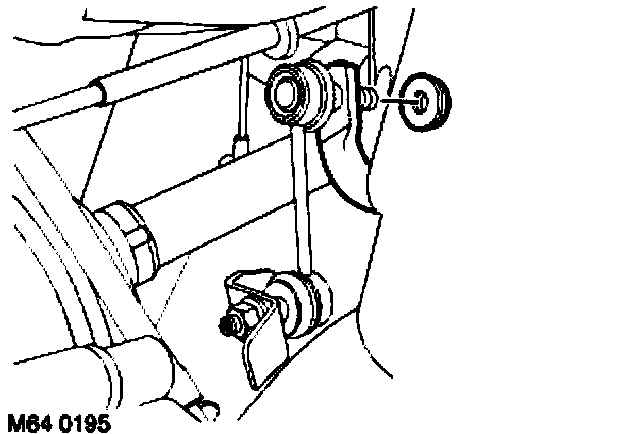

2. Remove nuts securing anti-roll bar links and release both links from anti-roll bar.

CAUTION: Use an open ended spanner on flats provided to prevent ball joint rotating.





3. Collect washer from lower fixing.

CAUTION: Note position of washer for refit.

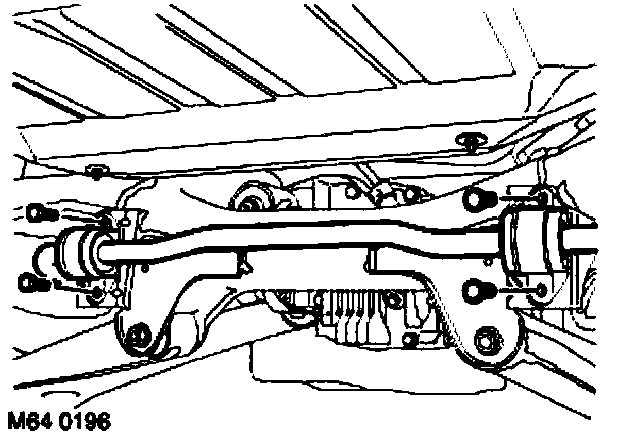

4. Remove 4 bolts securing anti-roll bar bush clamps to subframe.
5. Remove LH air spring assembly.
6. Maneuver anti-roll bar over subframe and remove from vehicle.

Refit
1. Position anti-roll bar to subframe and Maneuver into position.
2. Fit LH air spring.
3. Align anti-roll bar bush clamps, fit bolts and tighten to 38 Nm (28 ft. lbs.).
4. Connect anti-roll bar links, fit washer and nuts and tighten to 100 Nm (74 ft. lbs.).

CAUTION: The washer is hardened and must be fitted in the correct position.

5. Fit exhaust system.
