Steering Column Cover: Service and Repair

Nacelle - Column - Complete

Service Repair No - 57.40.29

Remove





1. Fully extend the steering column for access.

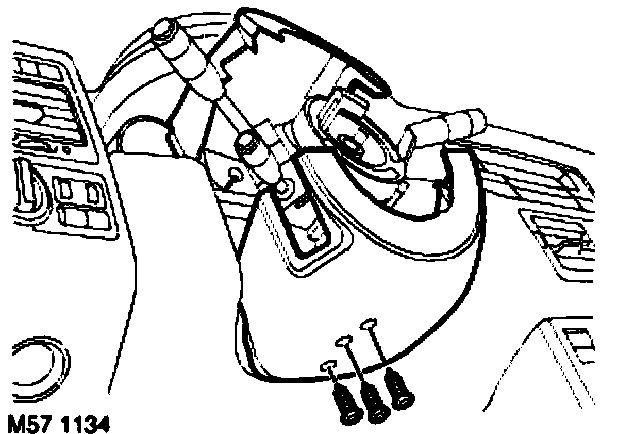

2. Remove 3 Torx screws securing steering column nacelle. Steering wheel removed from graphic for illustration purposes only.
3. Release nacelle from clips securing assembly to column extension gaiter
4. Remove steering column nacelle.

Refit
1. Push steering column extension gaiter fully forwards and fit lower half of nacelle.
2. Fit and tighten the 2 T25 Torx screws.
Ensure the lower half of nacelle does not foul the steering wheel.
3. Fit upper half of nacelle and ensure that clips engage with lower half.
4. Secure upper half of nacelle with T20 Torx screw.
5. Fit and secure steering column extension gaiter to nacelle.
Ensure the nacelle does not foul the steering wheel.
