Power Steering Pump: Service and Repair
Power Steering Pump - 4.2LService Repair No - 57.20.14
Removal
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.
3. Remove the accessory drive belt.

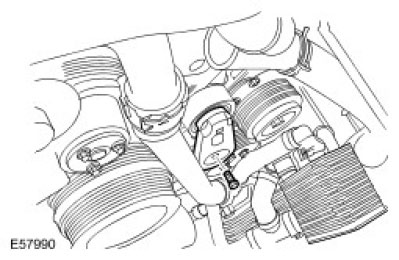

4. Remove the accessory drive belt tensioner.
^ Remove the bolt.
5. Remove the LH front wheel.

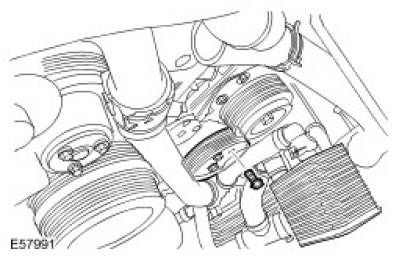

6. NOTE: Restrain the pulley to aid the removal of the bolts.
Remove the power steering pump pulley.
^ Remove and discard the 3 bolts.

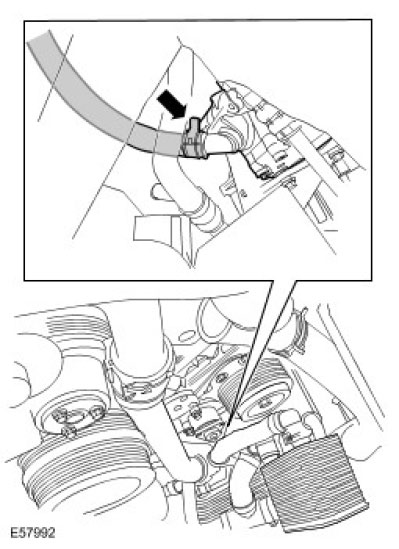

7. CAUTION: Always plug any open connections to prevent contamination.
Disconnect the low pressure line.
^ Release the clip.
^ Allow the fluid to drain into a container.

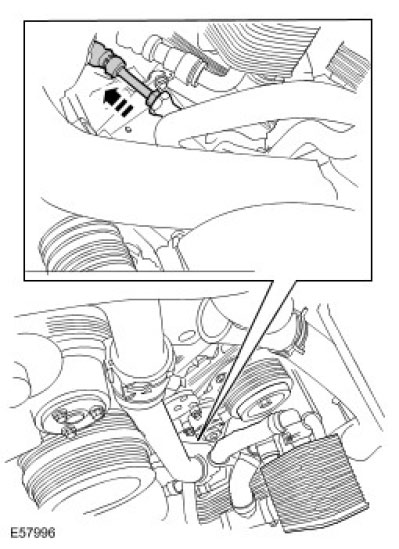

8. Disconnect the high pressure line.
^ Remove and discard the O-ring seal.

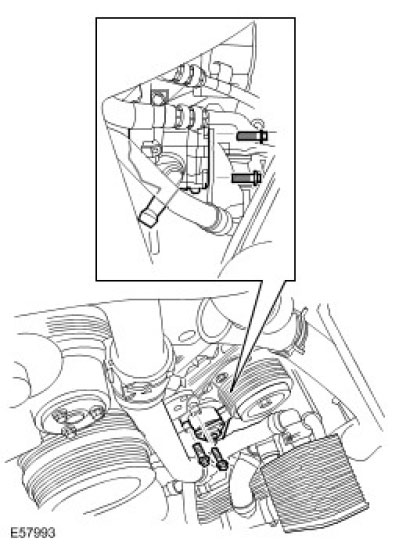

9. Remove the power steering pump.
^ Remove the 4 bolts.
Installation
1. Install the power steering pump.
^ Tighten the bolts to 25 Nm (18 ft. lbs.).
2. Connect the high pressure line.
^ Clean the component mating faces.
^ Install a new O-ring seal.
^ Tighten the union to 25 Nm (18 ft. lbs.).
3. Connect the low pressure line.
^ Clean the component mating faces.
^ Secure with the clip.
4. Install the power steering pump pulley.
^ Tighten the bolts to 25 Nm (18 ft. lbs.).
5. Install the front wheel.
^ Tighten the wheel nuts to 140 Nm (103 ft. lbs.).
6. Install the accessory drive belt tensioner.
^ Tighten the bolt to 40 Nm (30 ft. lbs.).
7. Install the accessory drive belt.
8. Connect the battery ground cable.
9. Fill and bleed the power steering system.
