Intake Air Duct: Service and Repair

Supercharger Outlet Pipe

Service Repair No - 19.46.16

Removal
1. Disconnect the battery ground cable.
2. Remove the air intake resonator.

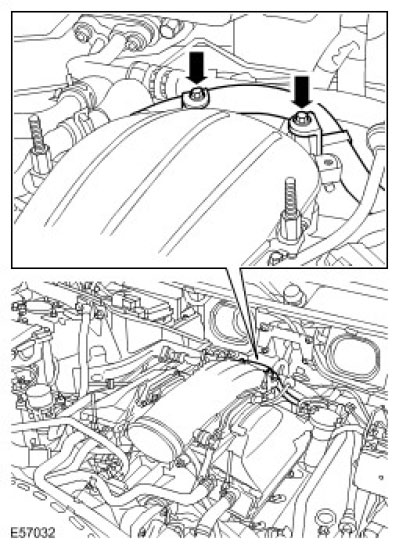

3. Position the wiring harness aside.
^ Remove the 2 bolts.

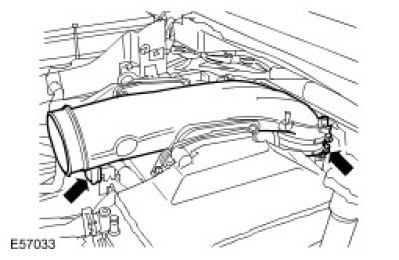

4. Remove the throttle body intake.
^ Disconnect the breather line.
^ Release the clip.
^ Release the bushing.

CAUTION: Before disconnecting or removing the components, ensure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

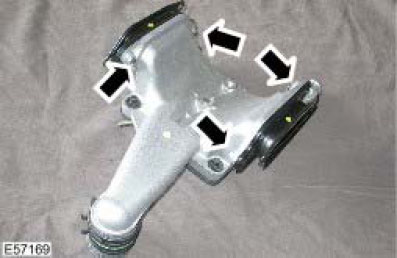

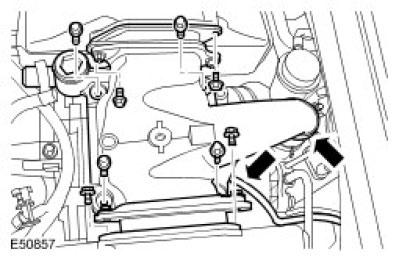

5. Remove the supercharger outlet pipe.
^ Remove the 8 bolts.
^ Disconnect the vacuum line.
^ Release the clip.
^ Discard the gasket.





6. Remove the charge air cooler intake ducts.
^ Remove the 4 nuts.

NOTE: Do not disassemble further if the component is removed for access only.





Installation
1. Install the charge air cooler intake ducts.
^ Clean the component mating faces.
^ Tighten the nuts to 10 Nm (7 ft. lbs.).

2. Install the supercharger outlet pipe.
^ Clean the component mating faces.
^ Install a new gasket.
^ Tighten the bolts to 10 Nm (7 ft. lbs.).
^ Secure the hose with the clip.
^ Connect the vacuum line.

3. Install the throttle body intake.
^ Clean the component mating faces.
^ Align the bushing.
^ Secure the clip.
^ Connect the breather line.

4. Attach the wiring harness.
^ Tighten the bolts to 10 Nm (7 ft. lbs.).

5. Install the air intake resonator.
6. Connect the battery ground cable.
