Front Suspension

Bearings - Hub

Service Repair No - 60.25.14

Remove





1. Remove hub assembly.

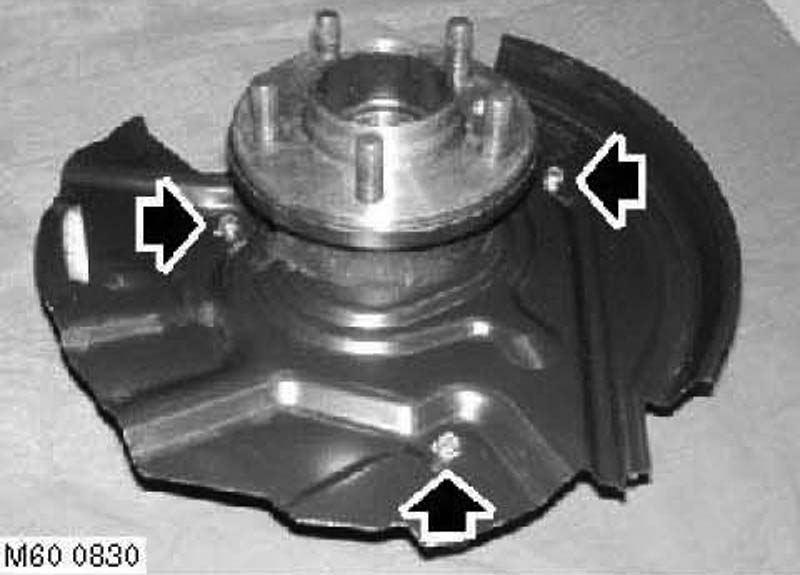

2. Remove 3 bolts securing brake disc shield.

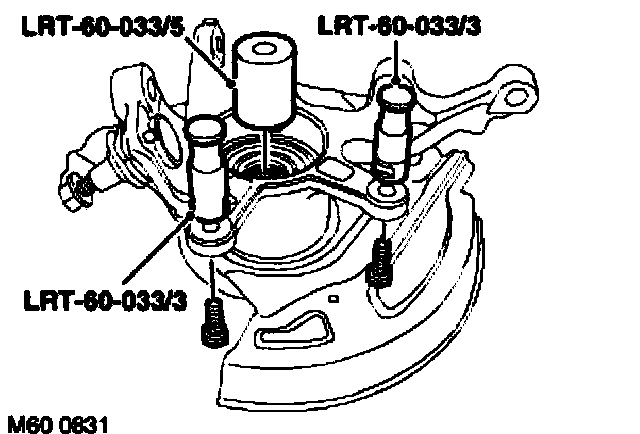

3. Position pins, LRT-60-033/3 to brake caliper mounting bolt locations and secure with bolts.





4. Fit adapter, LRT-60-033/5 to drive flange.

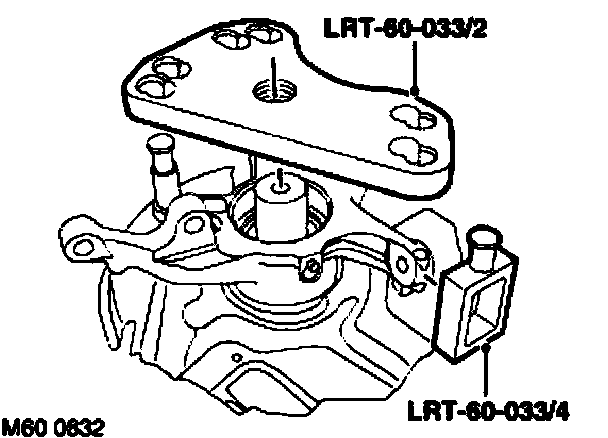

5. Locate plate, LRT-60-033/2 to pins, fit pin LRT-60-033/4 over steering arm and secure to plate.

NOTE: Pins locate in holes marked 'FRONT'

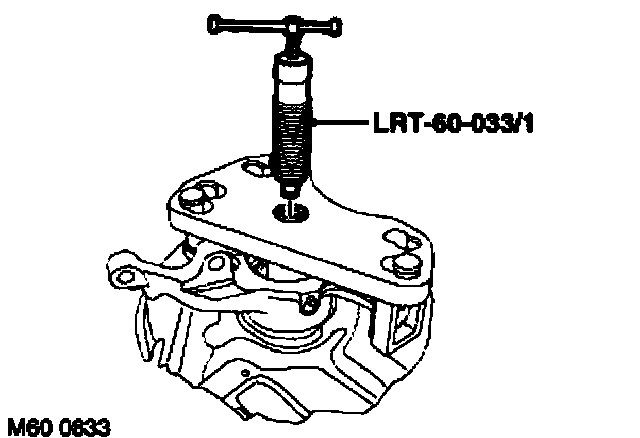

6. Screw hydraulic ram, LRT-60-033/1 into plate and press drive flange from hub.

NOTE: Outer bearing track will remain on drive flange.





7. Remove plate LRT-60-033/2 and pin LRT-60-033/4.

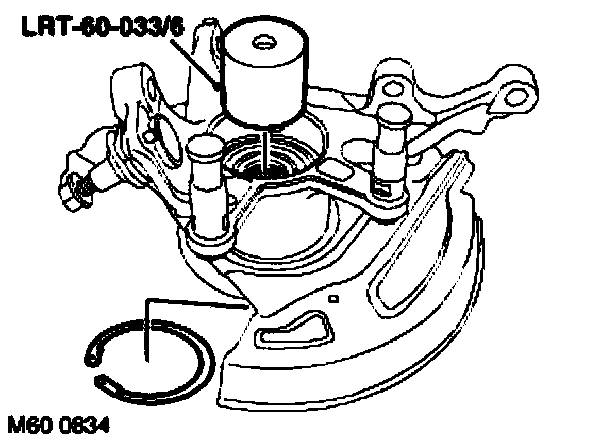

8. Remove and discard circlip.
9. Fit adapter, LRT-60-033/6 to bearing and using method previously described, remove bearing.





10. Remove pins LRT-60-033/3.
11. Remove bearing track from drive flange using a bearing separator.

Refit





1. Clean hub and drive flange.

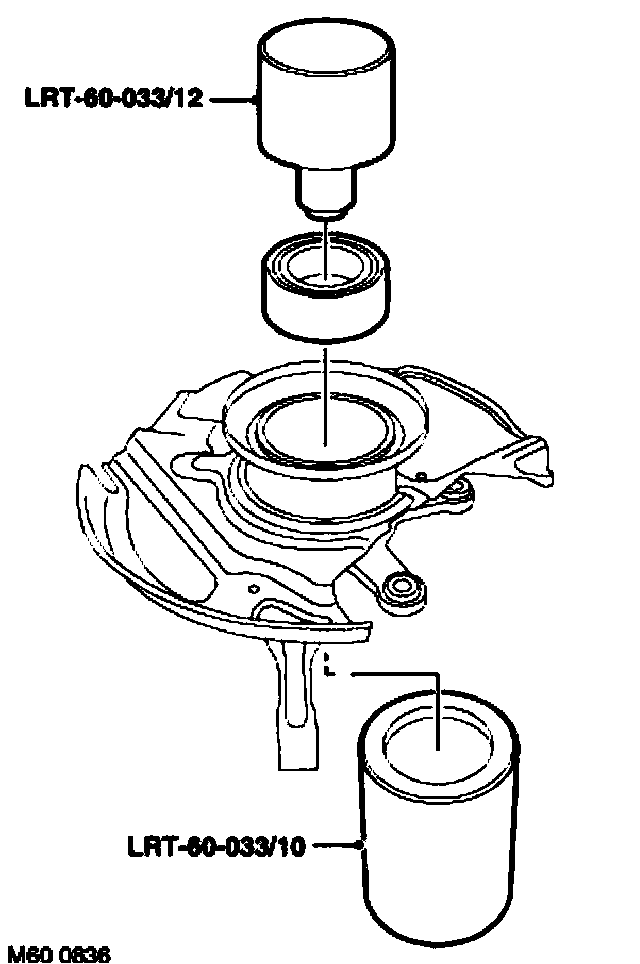

2. Position anvil, LRT-60-033/10 to bed of hydraulic press and locate hub on anvil.
3. Ensure hub and bearing mating surfaces are clean and dry.
4. Apply stud/bearing fit, STC 50553 to bearing mating surface in hub for half its length.





5. Press bearing into hub using adapter LRT-60-033/12.
6. Fit new circlip.

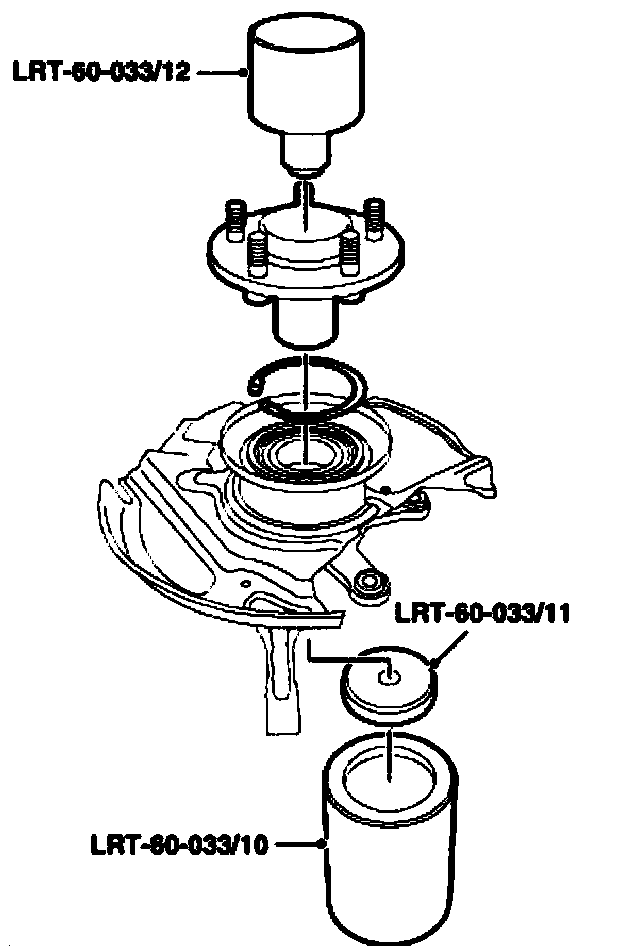

7. Fit bearing support, LRT-60-033/11 to anvil, and press flange into bearing using adapter LRT-60-033/12.
8. Remove tools.
9. Clean disc shield and mating face, align shield and fit and tighten bolts.
10. Fit hub assembly.
