Refrigerant System Schematic

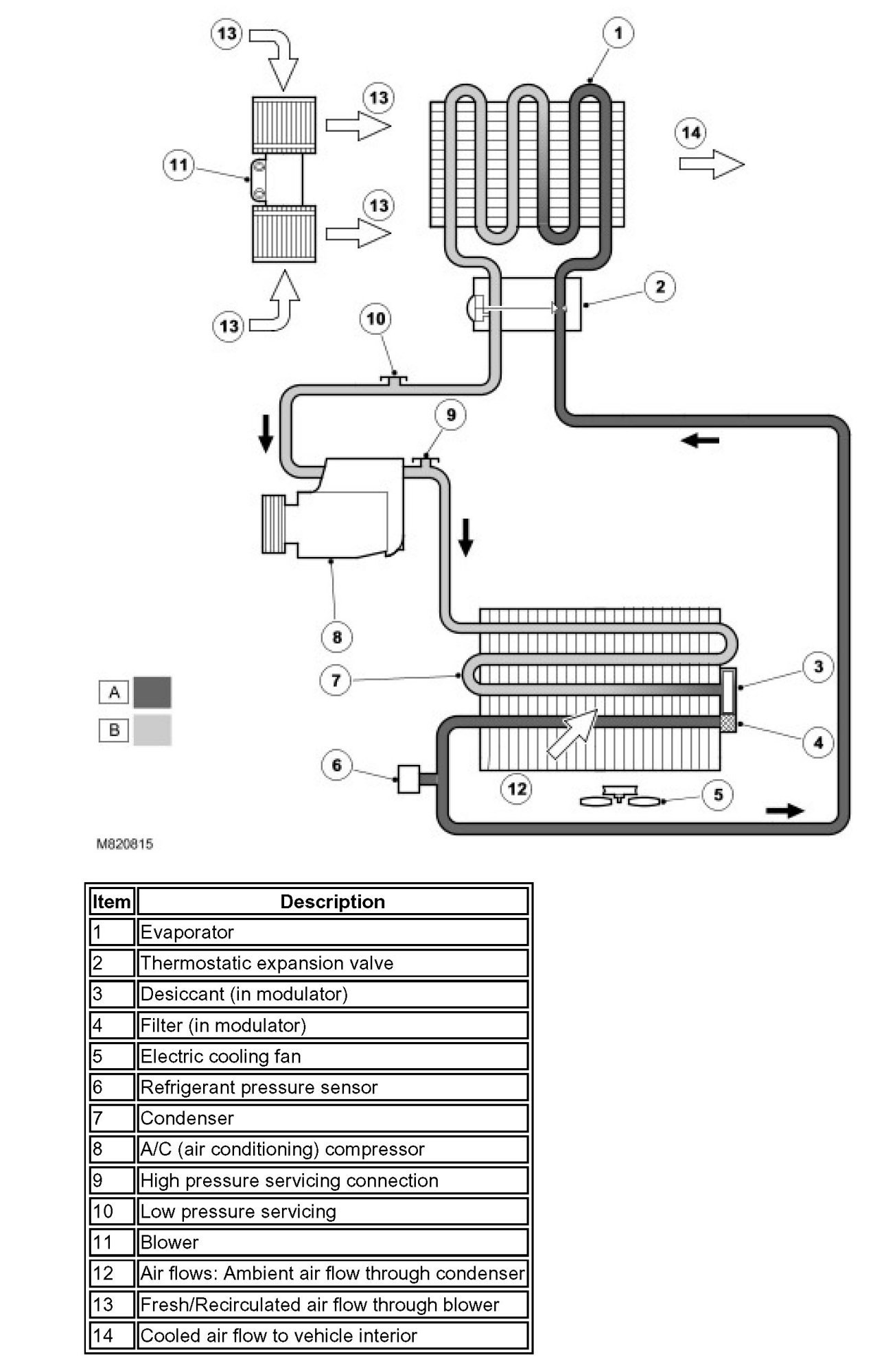

Refrigerant System Schematic

NOTE: A = Refrigerant liquid; B = Refrigerant vapor
