Air Inlet Duct

Air Inlet Duct

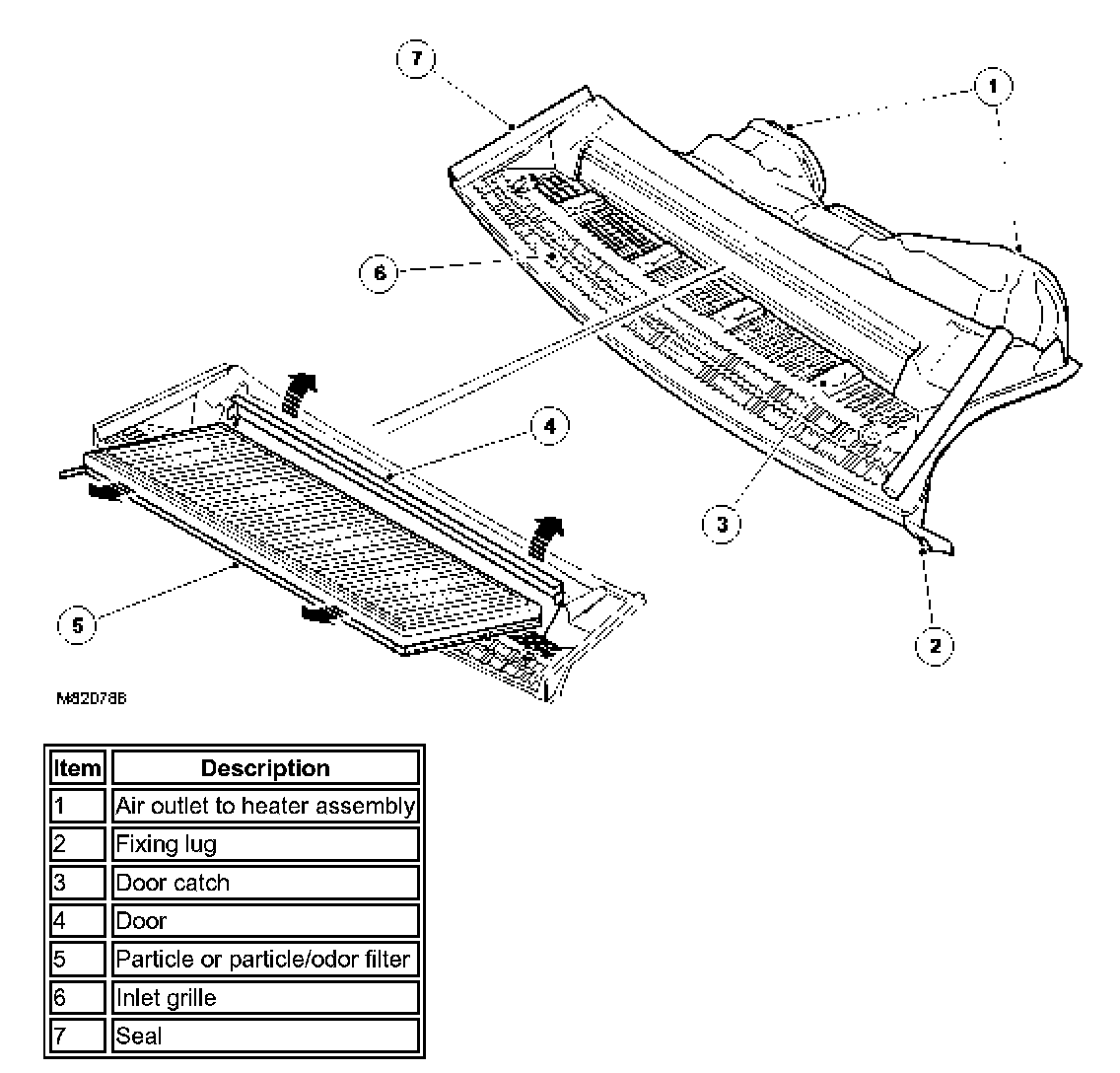

The air inlet duct directs fresh air from above the hood into the heater. The air inlet duct is centrally mounted on the engine bulkhead, below a ventilation grill in the hood, and secured to the bulkhead closing panels.

The cabin air filter is installed in the air inlet duct behind a hinged door.
