Passenger Side Register Trim Panel

Passenger Side Register Trim Panel (76.46.13)

Removal
1. Remove the A-pillar upper trim panel.
2. Remove the passenger side register.

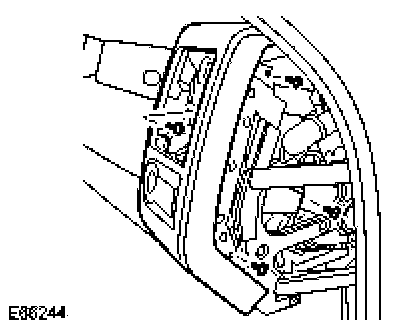

3. Remove the instrument panel end trim panel.
^ Open the front door for access.
^ Release sufficient door aperture seal for access.
^ Carefully release the 4 clips.







CAUTION: Protect the surrounding trim from damage when changing the component.

4. Release the cup holder.
^ Remove the Torx screw.
5. Remove the passenger side register trim panel.
^ Remove the 3 Torx screws.







6. Remove the cup holder.
^ Depress the 4 clips.

NOTE: Do not disassemble further if the component is removed for access only.

Installation
1. Install the cup holder.
^ Secure the clips.
2. Install the passenger side register trim panel.
^ Install the Torx screws.
^ Install the cup holder Torx screw at the rear of the assembly.
3. Install the instrument panel end trim panel.
^ Carefully align and secure the clips.
^ Install the aperture seal.
4. Install the passenger side register.
5. Install the A-pillar upper trim panel.
