Home >> Land Rover >> 2006 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Column >> Tilt Wheel Motor

Tilt Wheel Motor

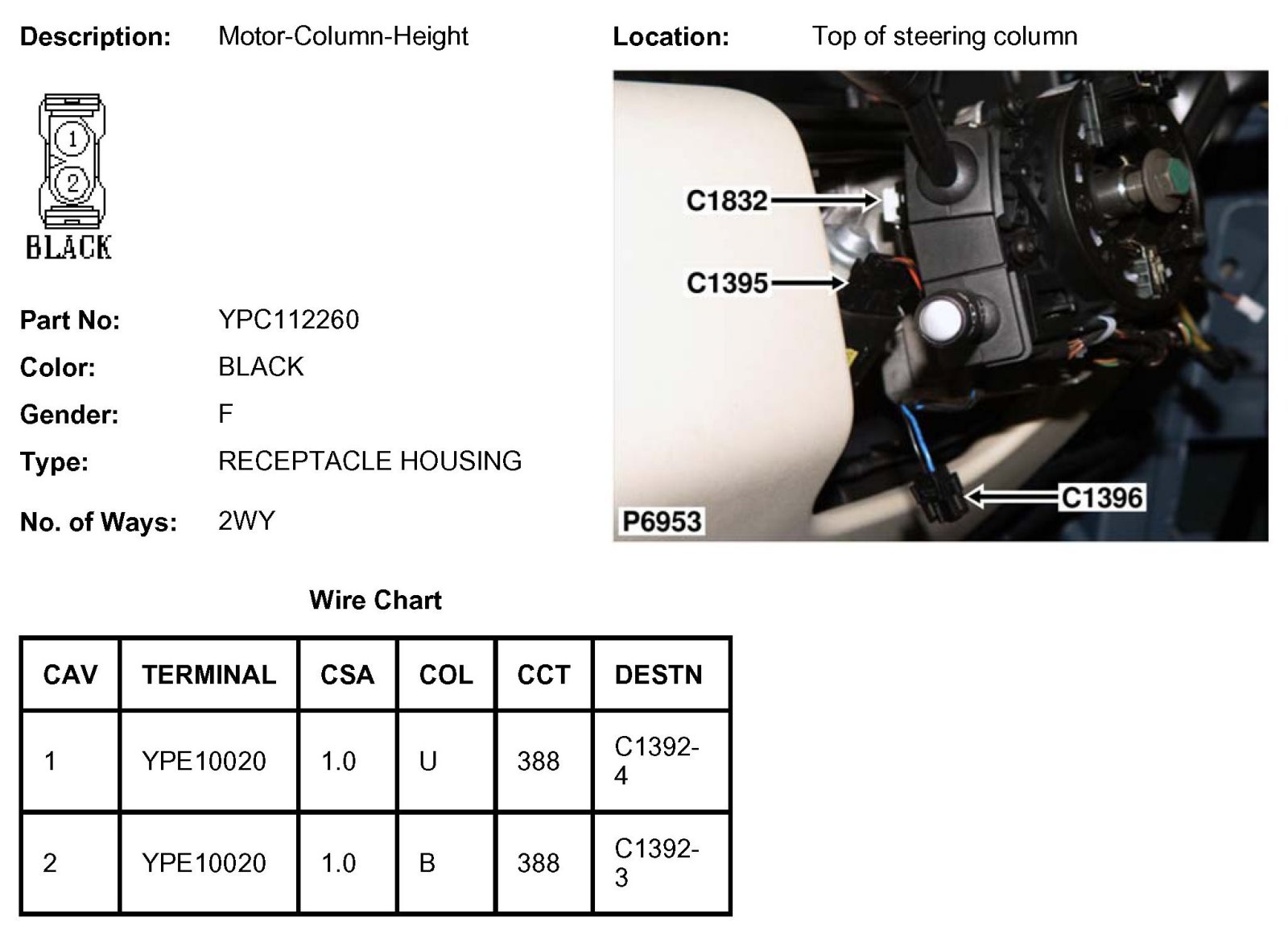

C1395:

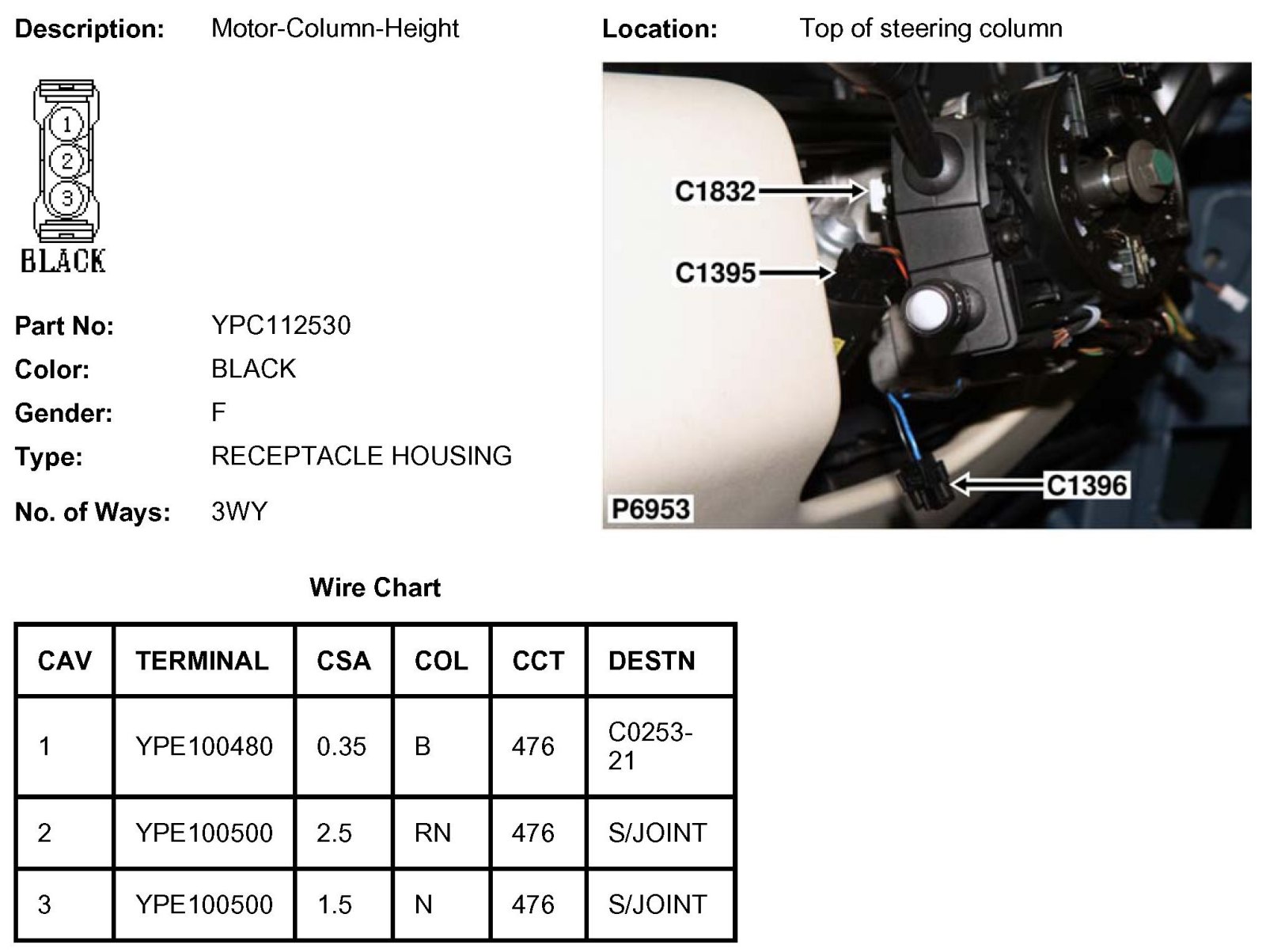

C1396:

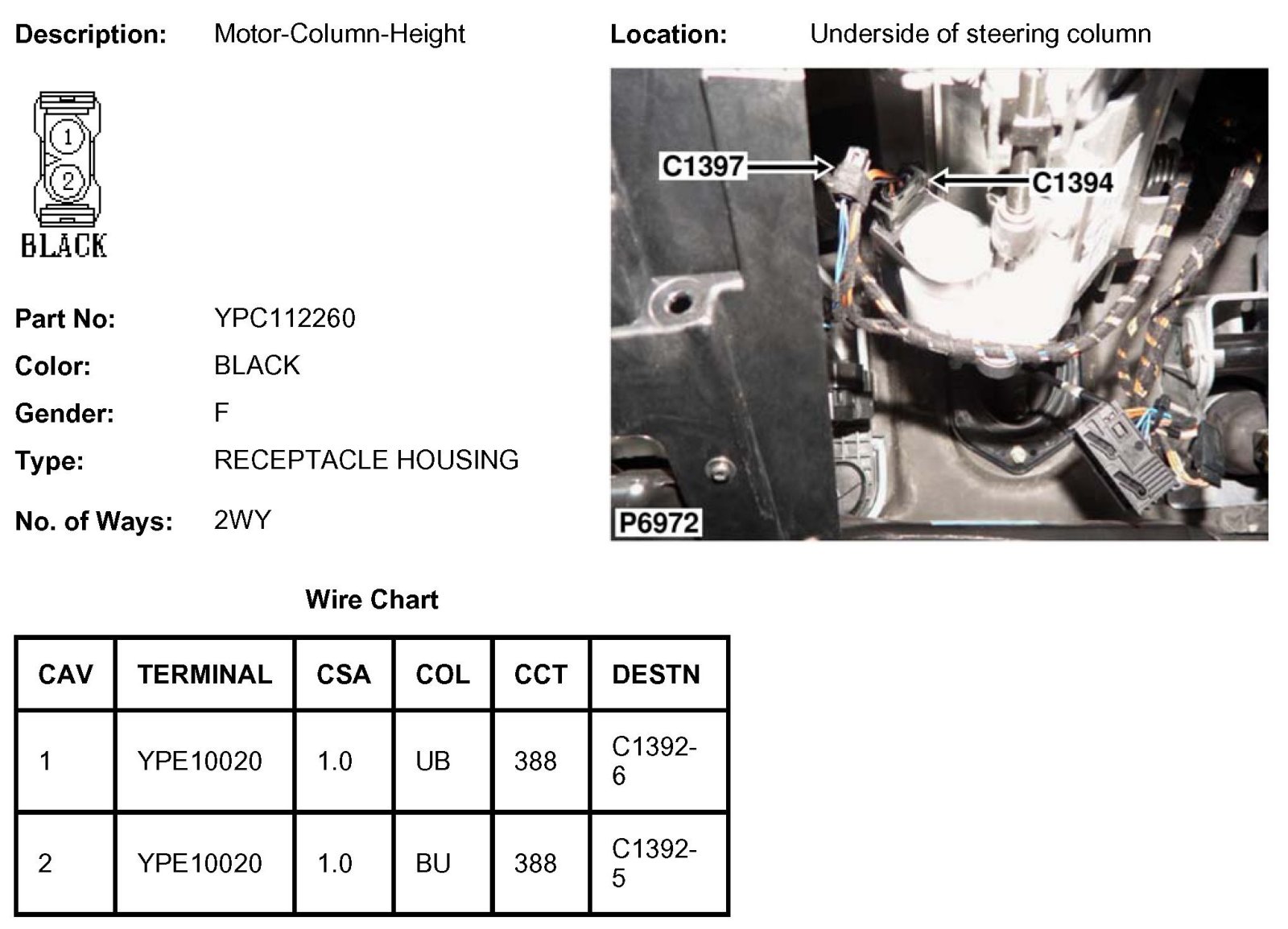

C1397:
