Land Rover
>>
2006
>>
Range Rover (LM) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2001 - C2100
>>
C2040
C2040

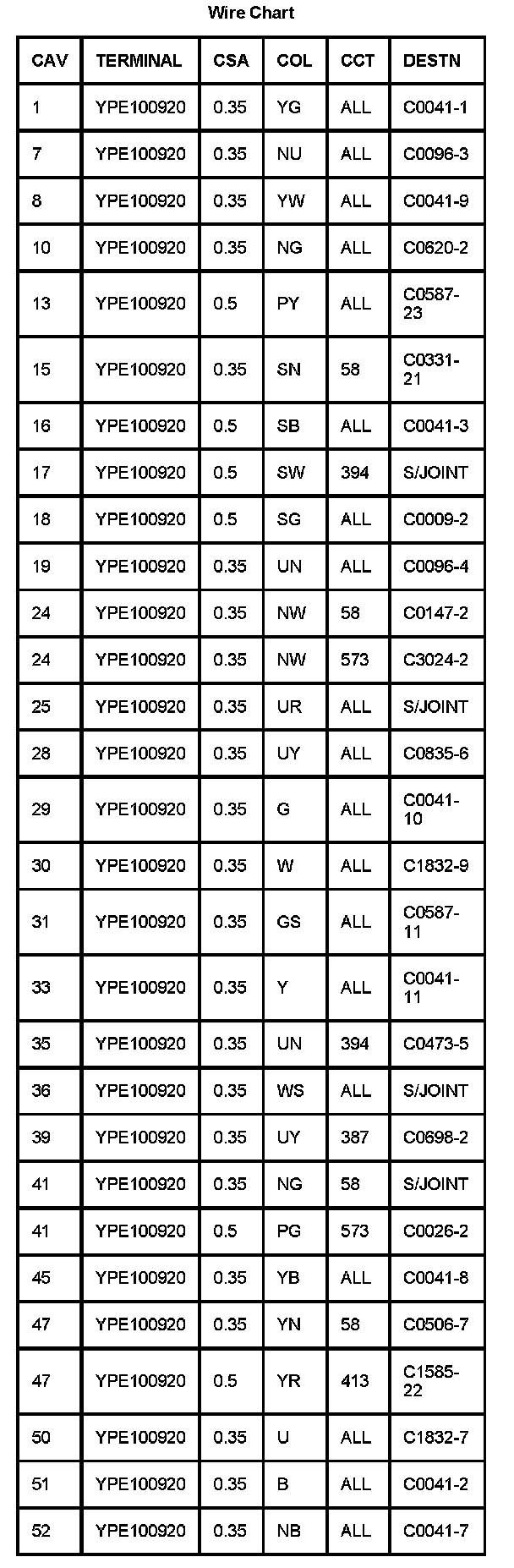

C2040 (Part 1):

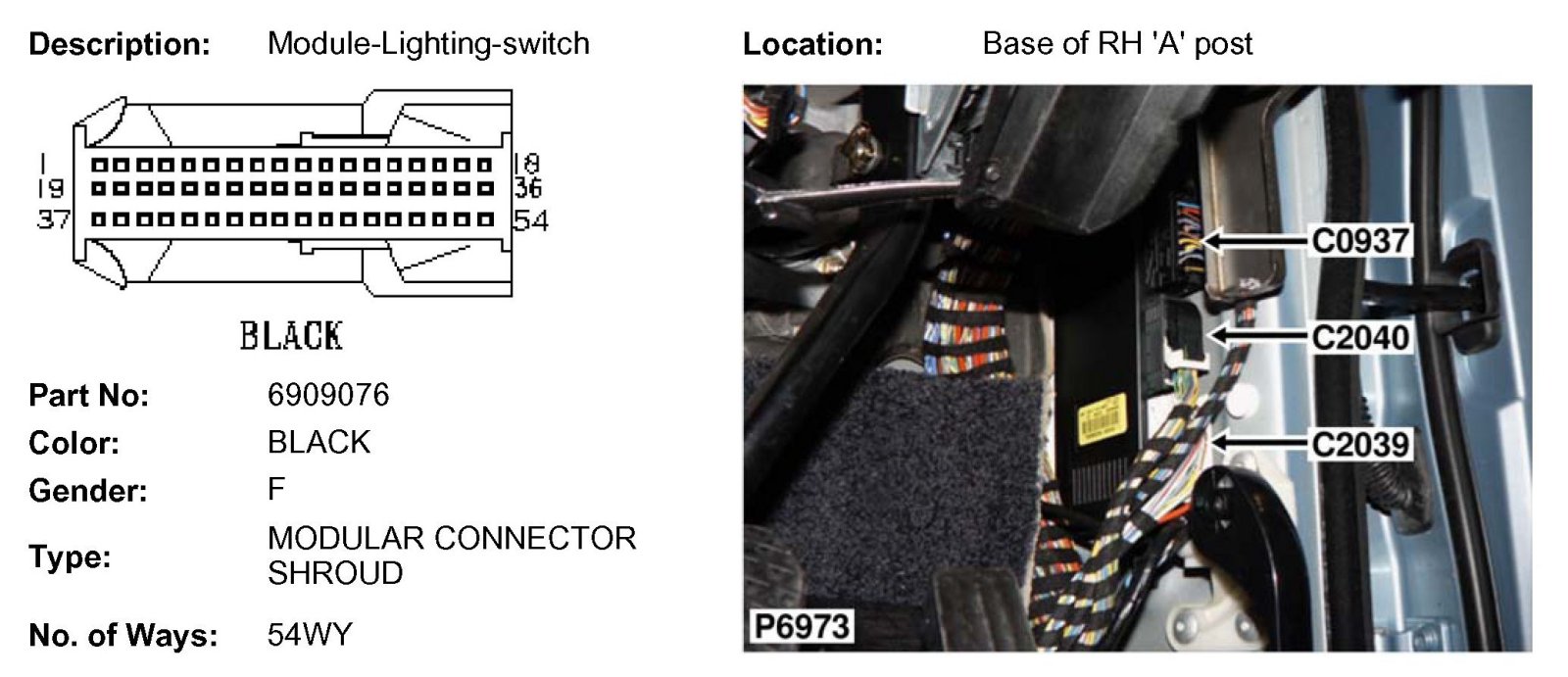

C2040(Part 2):
