Parking Brake Lever: Service and Repair

Lever Assembly - Handbrake

Service Repair No - 70.35.08

Removal
1. Remove center console.





2. Release and remove air duct.

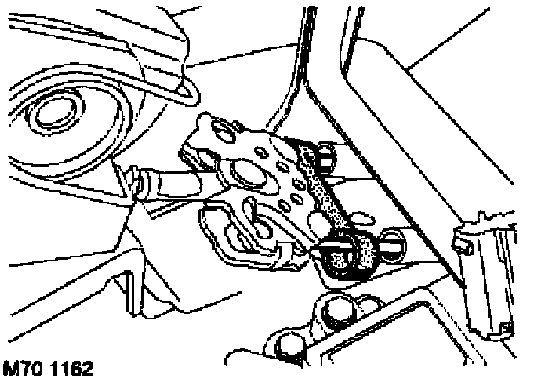

3. Release clip and disconnect handbrake cables from compensator.

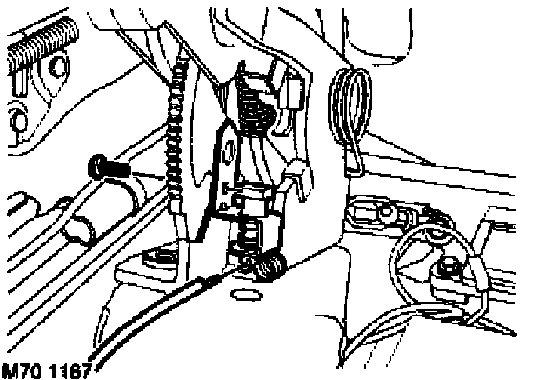

4. Release lead from switch.

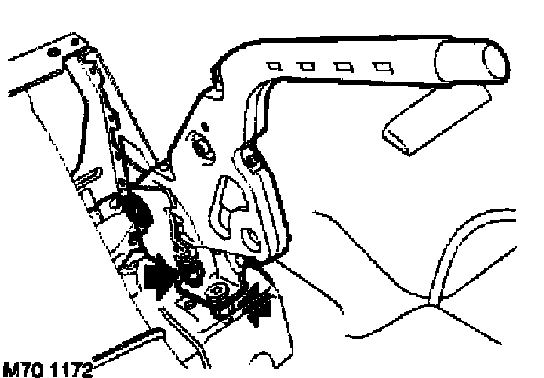

5. Remove 2 nuts securing handbrake lever.
6. Remove handbrake lever.

Installation
1. Fit handbrake lever to bracket, fit nuts and tighten to 21 Nm (15 ft. lbs.).
2. Connect lead to switch.
3. Connect cables to compensator.
4. Fit air duct.
5. Fit center console.
6. Check handbrake operation, adjust if necessary.
