Reservoir - Brake Fluid

Reservoir - Brake Fluid

Service Repair No - 70.25.31

Removal
1. Position container to collect fluid spillage.

CAUTION: Brake fluid will damage paint finished surfaces. If spilled, immediately remove fluid and clean area with water.

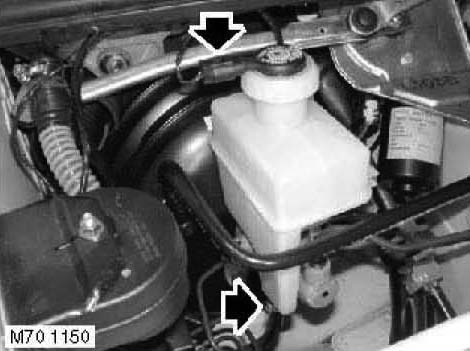

2. Disconnect multiplug from low fluid level sensor.
3. Release harness from clip.
4. Release clip and disconnect pre-charge pump feed hose.

CAUTION: Plug hose immediately to prevent fluid loss from pre-charge pump.

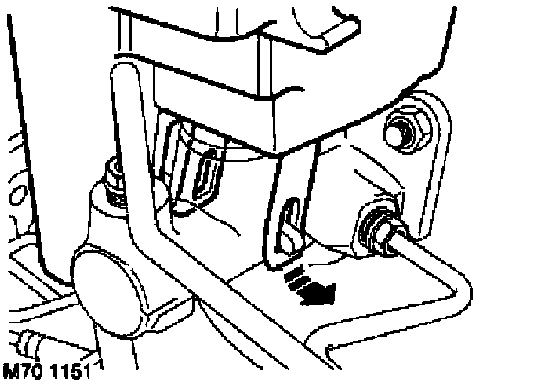

5. Release 2 clips and remove reservoir.
6. Remove and discard 2 reservoir seals.

CAUTION: Always fit plugs to open connections to prevent contamination.

Installation
1. Clean reservoir and master cylinder mating faces.
2. Fit seals.
3. Fit brake master cylinder.
4. Connect pre-charge pump feed hose and secure with clip.
5. Secure harness to clip.
6. Connect multiplug to low fluid level sensor.
7. Bleed brakes using T4.
