Cylinder - Master - Tandem
Cylinder - Master - TandemService Repair No - 70.30.08

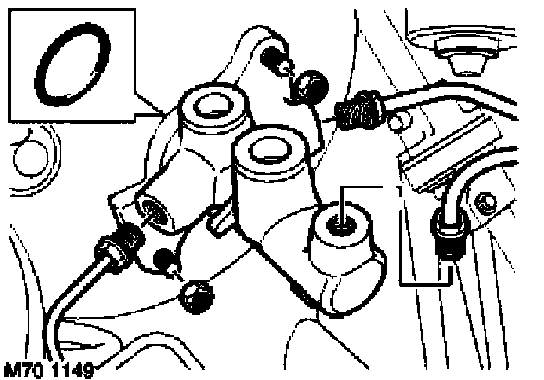

Removal
1. Remove fluid reservoir.
2. Disconnect brake pipes.
CAUTION: Always fit plugs to open connections to prevent contamination.
3. Remove and discard 2 nuts securing master cylinder to servo, remove master cylinder.
4. Remove and discard sealing ring.
Installation
1. Clean master cylinder and servo mating surfaces.
2. Fit new sealing ring to master cylinder.
3. Align push rod and position master cylinder to servo.
4. Fit new nuts securing brake master cylinder and tighten to 26 Nm (19 ft. lbs.).
5. Clean brake pipe unions.
6. Connect brake pipes to master cylinder and tighten unions to 14 Nm (10 ft. lbs.).
7. Fit fluid reservoir.
