Home >> Land Rover >> 2006 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Brakes and Traction Control >> Disc Brake System >> Brake Pad >> Brake Pad Wear Sensor >> Locations

Brake Pad Wear Sensor: Locations

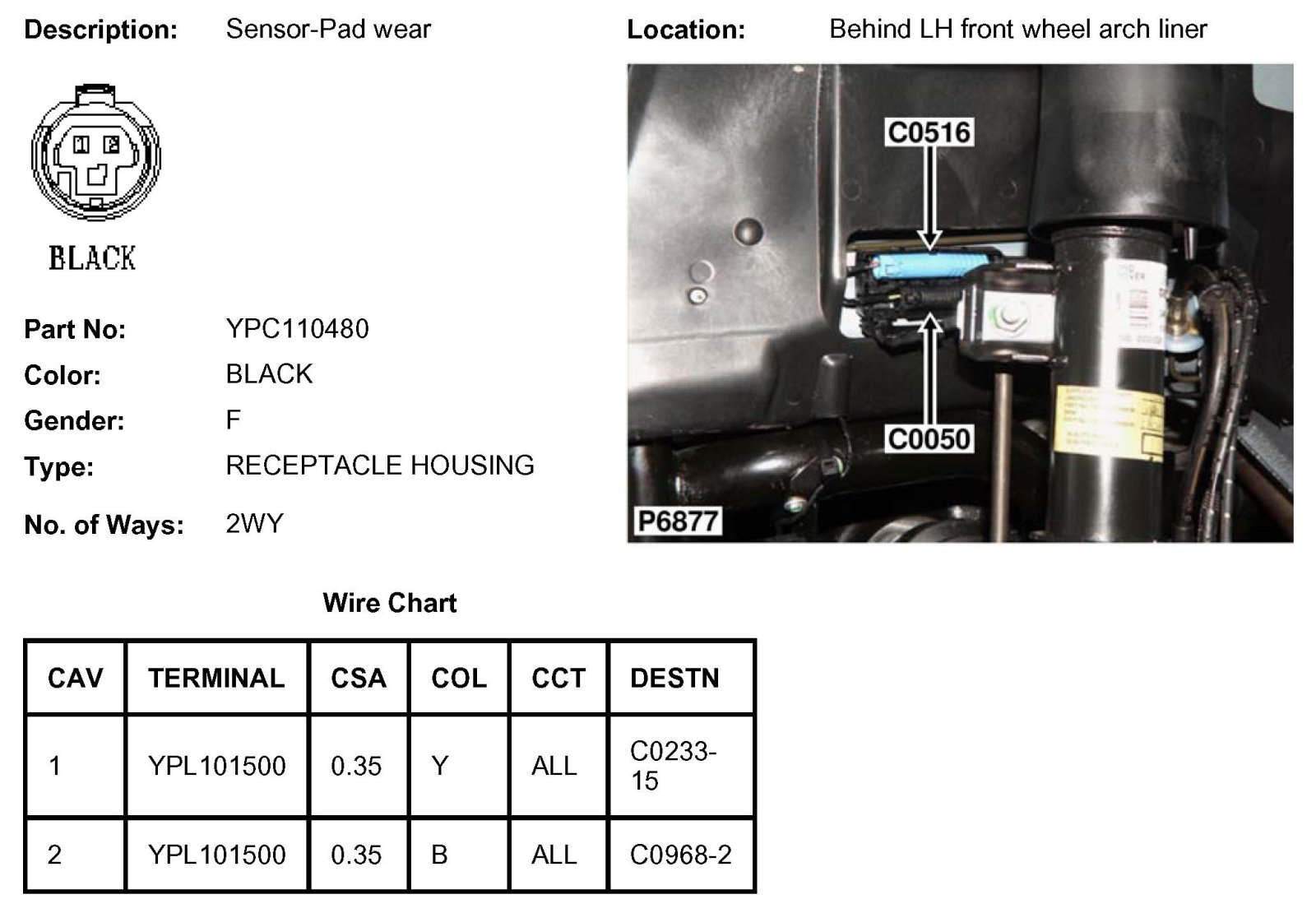

C0050:

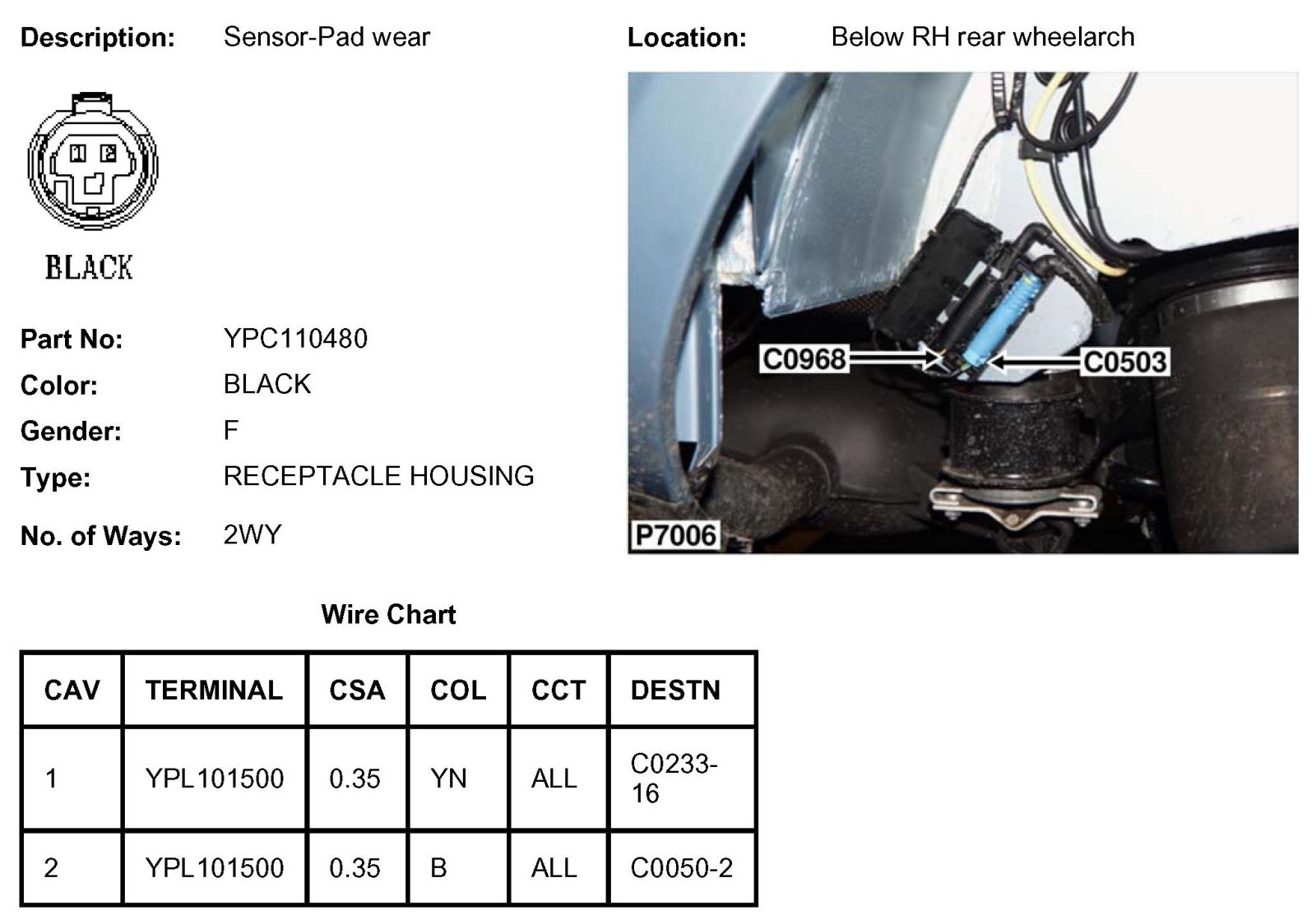

C0968:
