Hinge - Rear Seat - Side

Hinge - Rear Seat - Side

Service Repair No - 78.90.43

Remove

1. Fold rear seat forward.

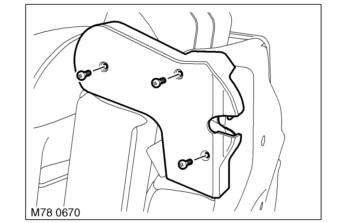

2. Remove 3 screws securing mechanism finisher, remove finisher.

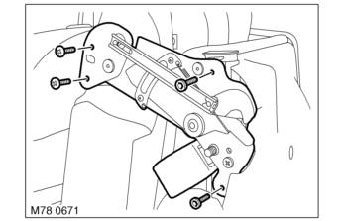

3. Remove and discard 2 Torx bolts securing mechanism to squab frame.
4. Remove 2 Allen bolts securing mechanism to seat frame, remove mechanism.

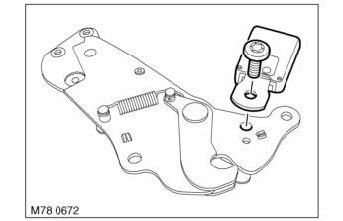

5. Remove and discard Torx bolt securing seat belt stalk, remove stalk.

Refit

1. Position seat belt stalk and secure with Torx bolt, tighten to 31 Nm (23 lbf.ft).
2. Position mechanism to seat frame and secure with Allen bolts, tighten to 25 Nm (18 lbf.ft).
3. Position squab frame to mechanism and secure with Torx bolts, tighten to 25 Nm (18 lbf.ft).
4. Position mechanism finisher and secure with screws.
5. Reposition rear seat.
