Finisher - Seat Base Rear

Finisher - Seat Base Rear

Service Repair No - 78.55.08

Remove

1. Remove LH rear seat.

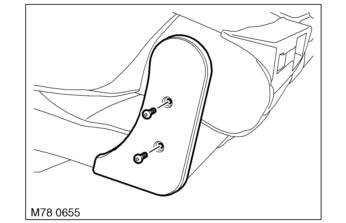

2. Remove 2 screws securing RH seat fold mechanism finisher and remove finisher.

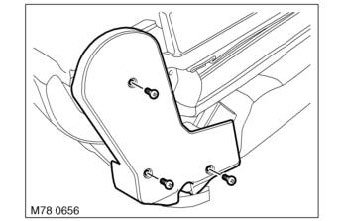

3. Remove 3 screws securing LH seat fold mechanism finisher and remove finisher.

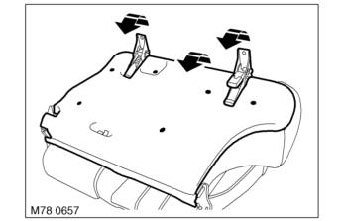

4. Remove 6 scrivets securing finisher.
5. With assistance, push back both spring loaded seat hinges and remove finisher.

Refit

1. With assistance, push back on both hinges, position and fit finisher.
2. Fit scrivets to secure finisher.
3. Position LH seat fold mechanism finisher, secure with screws.
4. Position RH seat fold mechanism finisher, secure with screws.
5. Fit LH rear seat.
