Arm Rest - Rear Seat

Arm Rest - Rear Seat

Service Repair No - 78.10.07.99

Remove

1. Remove rear seat hinge.







2. Release center catch and fold armrest down.
3. Release velcro strip securing armrest cover to back of squab, fold cover down.

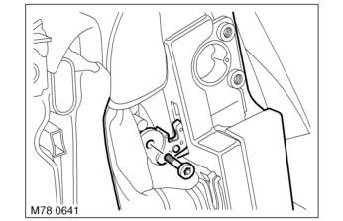

4. Remove Torx bolt from armrest pivot point.
5. Release armrest assembly from LH pivot point boss, remove assembly.

Refit

1. Position and fit armrest assembly to pivot point boss.
2. Fit and tighten Torx bolt to secure armrest to RH pivot point, tighten to 10 Nm (7 lbf.ft).
3. Position armrest cover and secure velcro strip to back of squab.
4. Reposition armrest and secure in center catch.
5. Fit rear seat hinge.
