Motor - Rise & Fall - Head Rest - Front Seat

Motor - Rise & Fall - Head Rest - Front Seat

Service Repair No - 78.70.31

Remove

1. Remove seat assembly.

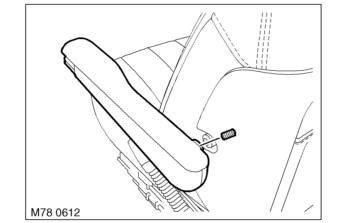

2. Remove Allen bolt securing arm rest.
3. Remove armrest from boss.

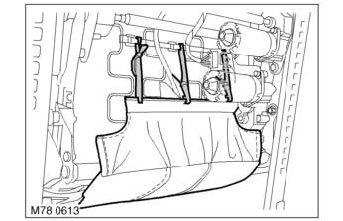

4. Release 3 backboard tension straps from under seat.
5. Release staples securing squab cover to lower backboard.







6. Release 2 studs securing lower half of backboard.
7. Release squab side cover from both sides of backboard.

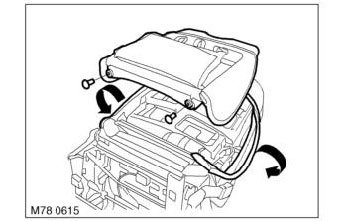

8. Release backboard from seat.







9. If fitted: Disconnect headrest display unit multiplug and release harness from 4 clips.
10. Release headrest from motor assembly and remove from seat.
11. Disconnect multiplug from headrest rise and fall motor.

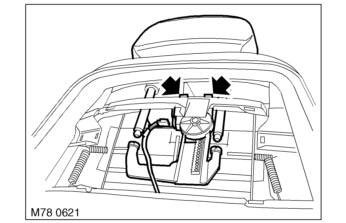

12. Release motor assembly from retaining clips and remove from frame.

Refit

1. Position motor assembly to frame and secure in retaining clips.
2. Connect multiplug to headrest rise and fall motor.
3. Fit head rest in seat and secure to motor assembly.
4. If fitted: Connect headrest display unit multiplug and secure harness with clips.
5. Position backboard to seat assembly, fit studs securing lower of backboard.
6. Position and fit both sides of squab cover to backboard.
7. Position lower squab cover to backboard and staple.
8. Fit backboard tension straps to under seat retaining clips.
9. Fit armrest to boss and secure with Allen bolt, tighten to 25 Nm (18 lbf.ft).
10. Fit seat assembly.
