Motor - Rise & Fall - Front Seat

Motor - Rise & Fall - Front Seat

Service Repair No - 78.70.27

Remove

1. Remove seat assembly.

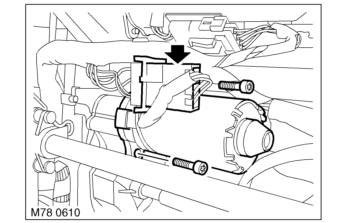

2. Disconnect multiplug from rise and fall motor.
3. Remove 2 Torx bolts securing rise and fall motor and remove motor.

Refit

1. Position rise and fall motor and secure with Torx bolts, tighten to 10 Nm (7 lbf.ft).
2. Connect multiplug to rise and fall motor.
3. Fit seat assembly.
