Motor - Fore & Aft - Front Seat

Motor - Fore & Aft - Front Seat

Service Repair No - 78.70.25

Remove

1. Remove seat assembly.







2. Disconnect multiplug from fore and aft motor.

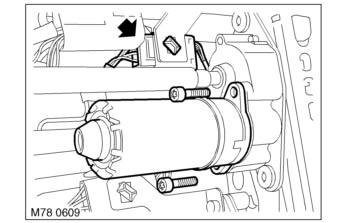

3. Remove 2 Torx bolts from fore and aft motor and remove motor.

Refit

1. Position fore and aft motor and secure with Torx bolts, tighten to 10 Nm (7 lbf.ft).
2. Connect multiplug to fore and aft motor.
3. Fit seat assembly.
