Sunroof / Moonroof Lift Mechanism: Service and Repair

Culisse (lifting) Assembly - One Only

Service Repair No - 76.84.18

Remove

1. Remove sunroof glass.

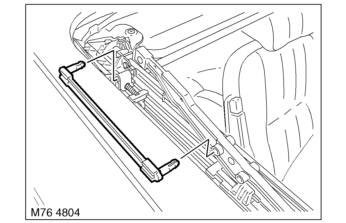

2. Release spacing rod from lifting culisse.

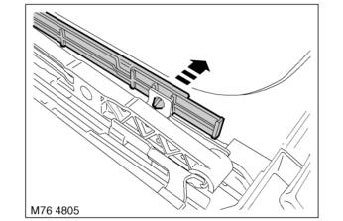

3. Release culisse shield from culisse.

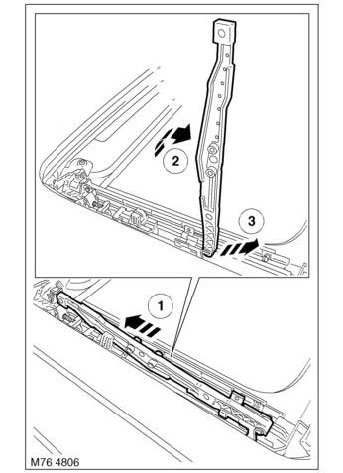

4. Slide lifting culisse towards the rear until access slot is located (1).
5. Fold lifting culisse in upward position (2), and release culisse from wind deflector operating slide (3).

Refit

1. Connect culisse to wind deflector operating slide and fold down.
2. Position lifting culisse in access slot and slide forward.
3. Fit culisse shield from culisse.
4. Secure spacing rod to lifting culisse.
5. Fit sunroof glass.
