Trim Finisher - 'D' Post - Upper

Trim Finisher - 'D' Post - Upper

Service Repair No - 76.13.30

Remove

1. Remove lower 'D' post finisher.

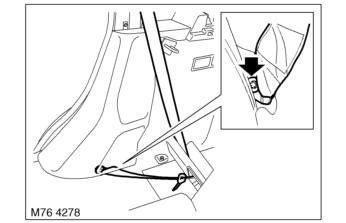

2. Remove and discard Torx bolt from lower seat belt anchor.
3. Release upper 'D' post finisher from seat belt webbing and remove finisher.

Refit

1. Pass seat belt through upper 'D' post finisher, fit belt and tighten Torx bolt to 50 Nm (37 lbf.ft).
2. Fit finisher.
