Rear Bumper: Service and Repair

Bumper - Rear

Service Repair No - 76.22.74

Remove

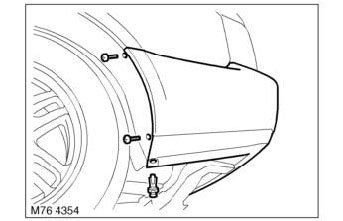

1. Remove 2 scrivets and 4 screws securing wheel arch liner to rear bumper.

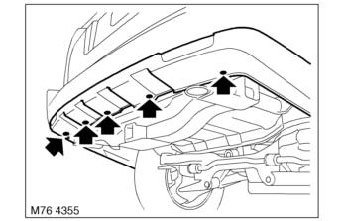

2. Remove 5 screws securing bumper apron to armature.

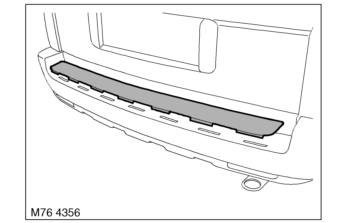

3. Carefully release 7 clips securing rear bumper finisher, open lower tailgate and remove finisher.







4. Remove 5 screws securing top edge of bumper to armature.
5. Depress 6 clips securing bumper to rear wings and with assistance remove bumper from vehicle.

CAUTION: Always protect paintwork when removing or refitting any body trims or bumpers.

Refit

1. With assistance position bumper to body.
2. Fit and finger tighten screws securing top edge of bumper to armature.
3. Align bumper sides to rear wings and secure in clips.
4. Fit and tighten bumper apron screws, tighten screws securing top edge of bumper to armature.
5. Position wheel arch liners, secure with screws and scrivets.
6. Fit and secure finisher to bumper.
