Extension - Spoiler - Front Bumper

Extension - Spoiler - Front Bumper

Service Repair No - 76.22.78

Remove

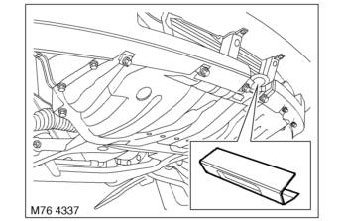

1. Release clips and remove towing eye finisher.

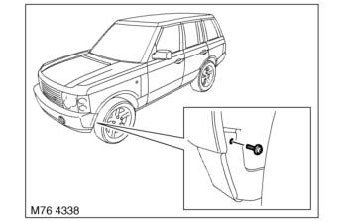

2. Remove screw securing bumper extension to wheel arch liner.

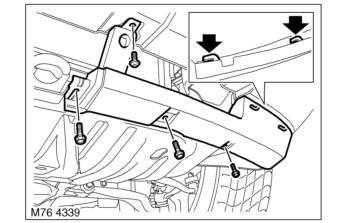

3. Remove 3 screws securing bumper extension to undertray.
4. Remove screw securing extension to bumper.
5. Release extension from wheel arch liner, release clips and remove from bumper.

Refit

1. Fit screws and secure bumper extension to front bumper.
2. Fit and tighten screw securing bumper extension to wheel arch liner.
3. Fit and secure towing eye finisher.
