Home >> Land Rover >> 2006 >> Range Rover (LM) V8-4.2L SC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Speaker >> Description and Operation >> DSP System - Speaker Control Diagram

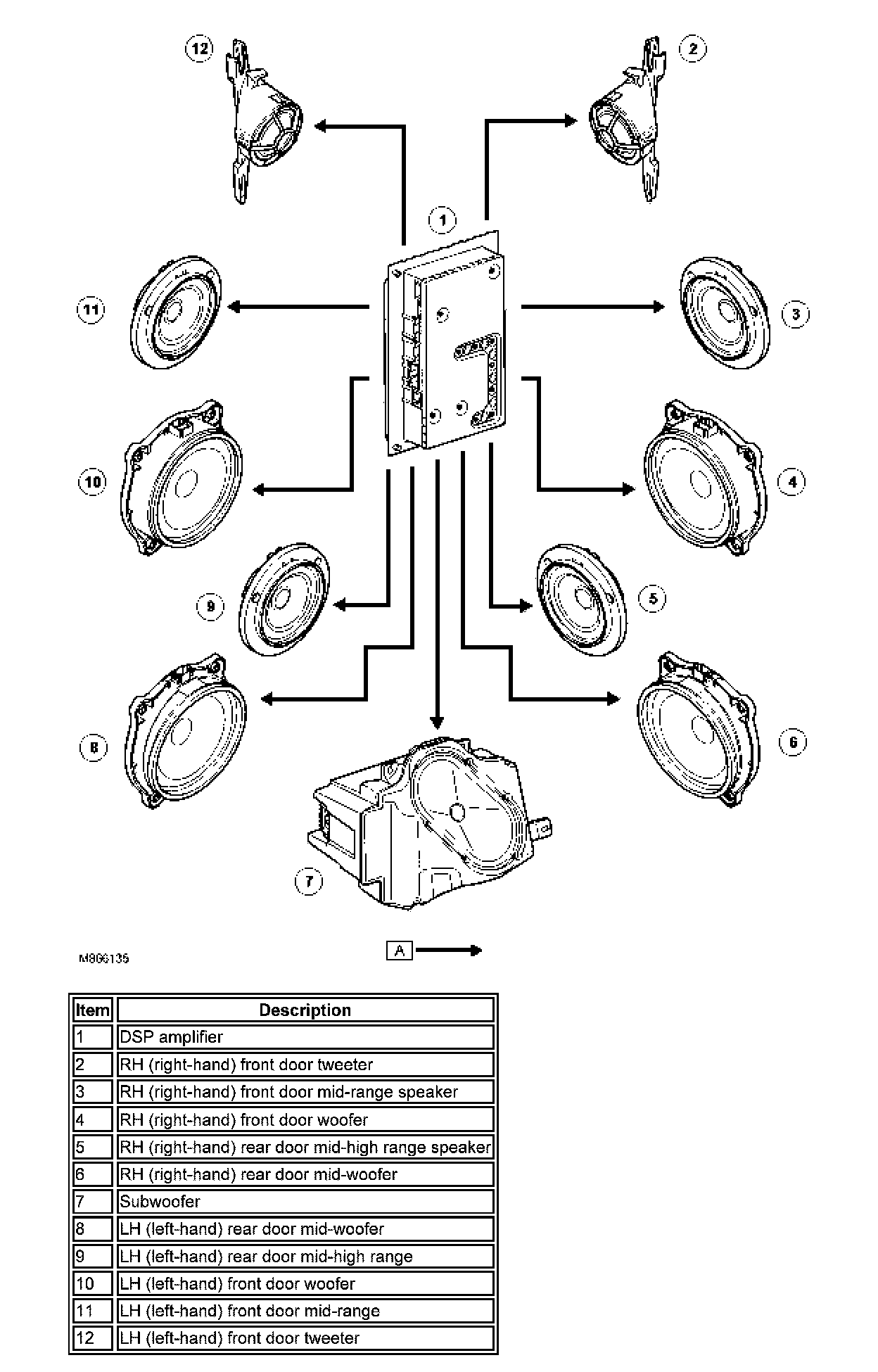

DSP System - Speaker Control Diagram
