Satellite Radio Tuner



Satellite Radio Tuner

Removal

1. Disconnect the battery ground cable.
2. Remove the information and entertainment module.

CAUTION: Cover fiber optic cable connectors to minimize dust ingress and avoid bending the cables in a radius of less than 30 mm.

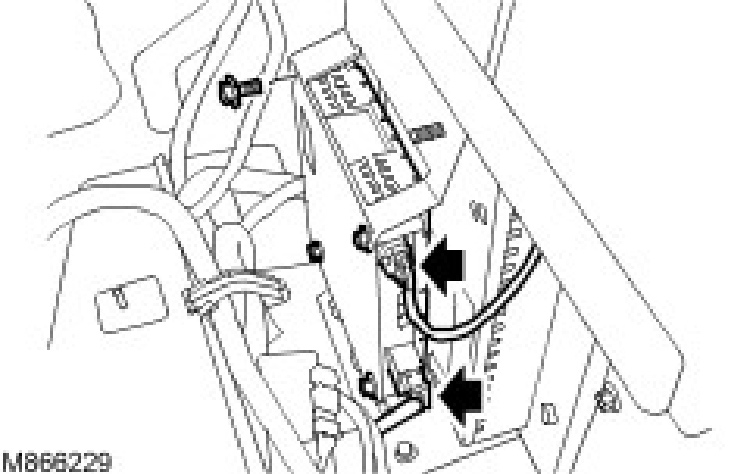

3. Disconnect the satellite radio tuner optical connector.





4. Disconnect the satellite radio tuner electrical connector.
5. Remove the satellite radio tuner.
^ Remove the 4 bolts.

Installation
1. Install the satellite radio tuner.
^ Tighten the bolts to 4 Nm (3 ft. lbs.).
2. Connect the satellite radio tuner electrical connector.
3. Connect the satellite radio tuner optical connector.
4. Install the information and entertainment module.
5. Connect the battery ground cable.
6. Using the Land Rover approved diagnostic equipment, follow the on-screen instructions and configure the satellite radio tuner.
