Land Rover
>>
2006
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Description and Operation
>>
Wiper and Washer Control Diagram
Wiper and Washer Control Diagram
Wiper and Washer Control Diagram

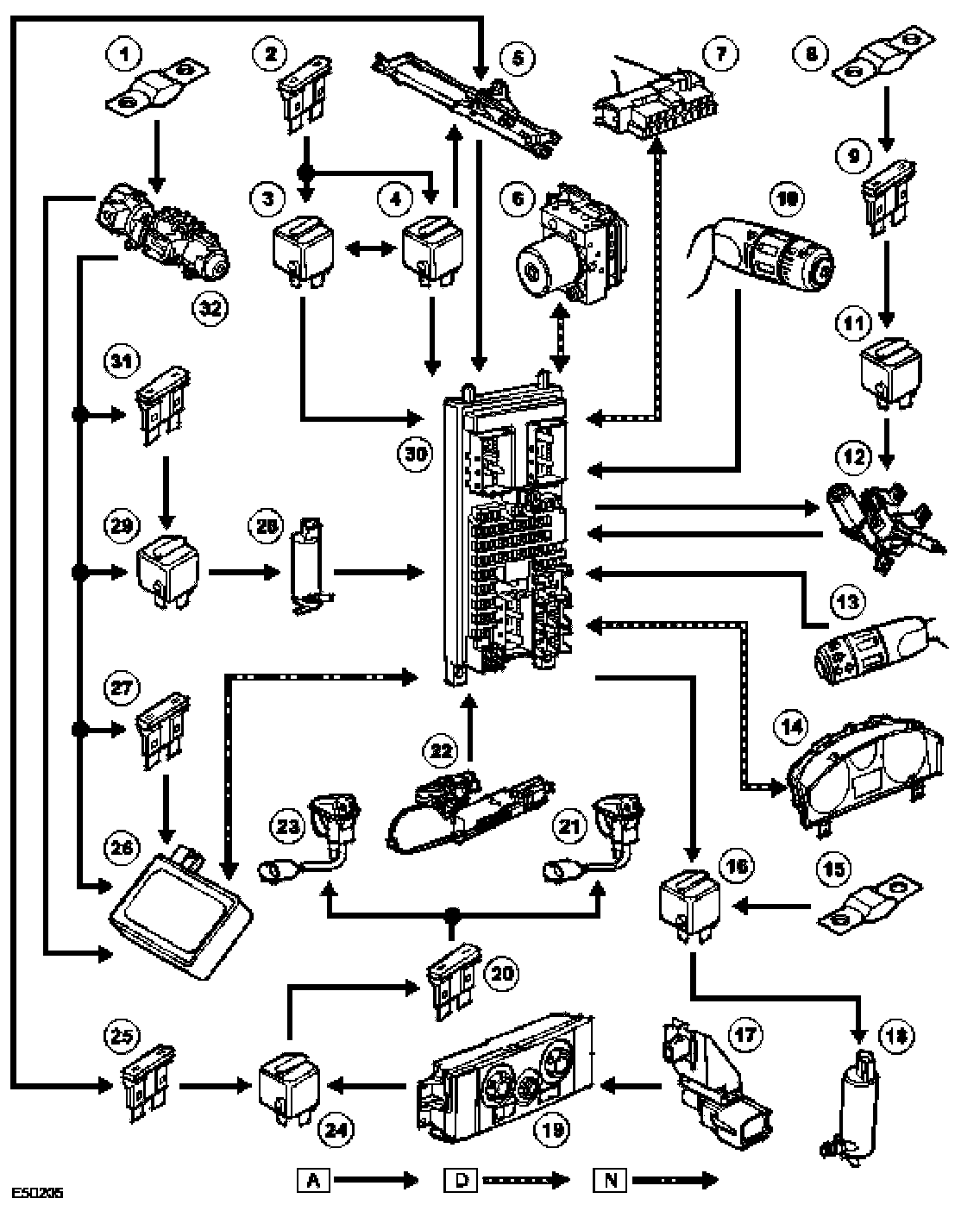

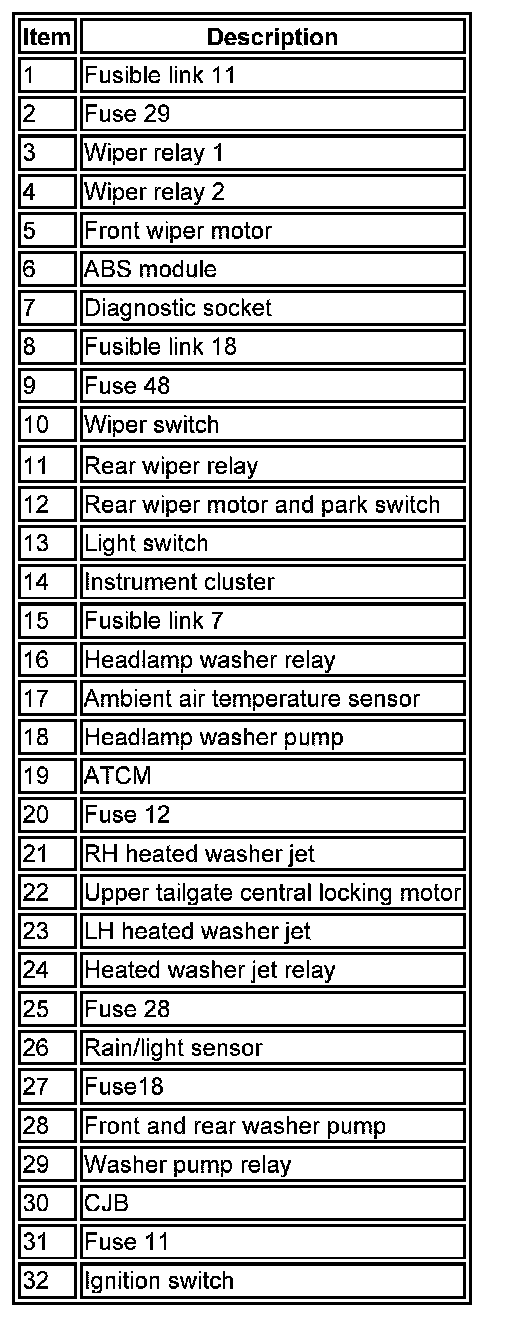

Wiper and Washer Control Diagram - Part 1:
Wiper and Washer Control Diagram - Part 2:
