Power Steering Pump: Service and Repair

Power Steering Pump - 4.OL

Service Repair No - 57.20.14


Removal
1. Disconnect the battery ground cable.
2. Remove the accessory drive belt.

3. CAUTION: Before the disconnection or removal of any components, ensure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.

NOTE: Some oil spillage is inevitable during this operation.

Clamp the power steering pump supply hose to minimize fluid loss.
4. Disconnect the high pressure line at the steering pump union.
^ Position an absorbent cloth to collect fluid spillage.
5. Disconnect the power steering pump supply hose.
^ Release the clip.

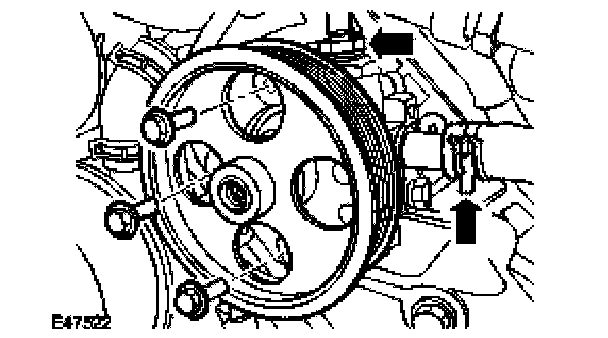

6. Remove the power steering pump.
^ Remove the 3 bolts.

Installation
1. Install the power steering pump.
^ Clean the component mating faces.
^ Install and tighten the bolts to 25 Nm (18 ft. lbs.).
2. Connect the power steering supply hose to the steering pump.
^ Clean the component mating faces.
^ Secure with the clip.
3. Connect the high pressure line to the steering pump.
^ Clean the component mating faces.
^ Install new seals.
^ Tighten the union to 25 Nm (18 ft. lbs.).
4. Install the accessory drive belt.
5. Connect the battery ground cable.
6. Fill and bleed the power steering system.
