Connector Views
>>
Parking Assist Distance Sensor
>>

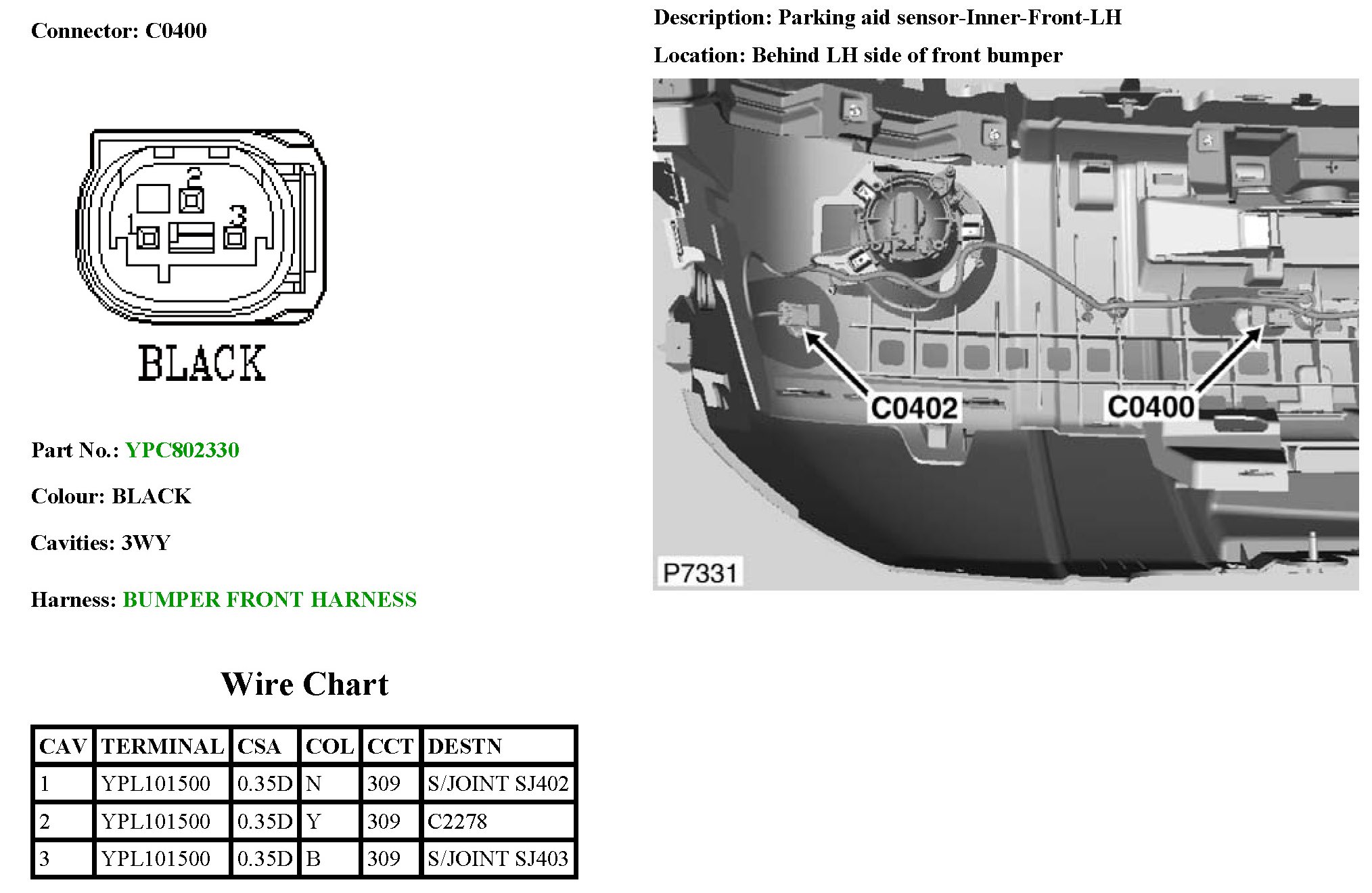

Parking Aid Sensor-Inner-Front-LH
Parking Aid Sensor-Inner-Front-LH
C0400:
