Engine Mount LH
Engine Mount LHService Repair No - 12.45.11
Removal
1. Disconnect the battery ground cable.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
3. Remove the LH exhaust manifold.

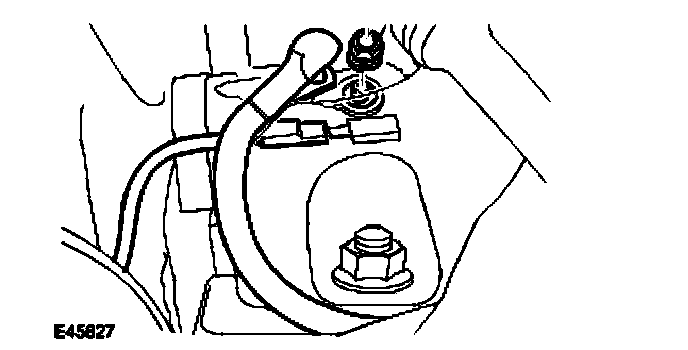

4. Release the starter motor cable.
^ Release the terminal cover.
^ Remove the terminal nut insulator.
^ Remove the nut.
5. CAUTION: Protect the engine during this operation.

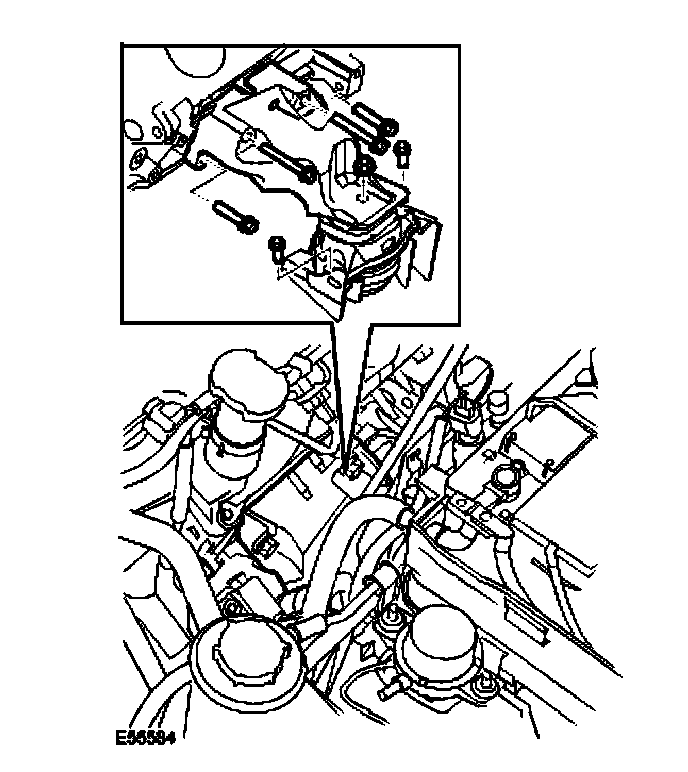

Remove the engine mount bracket.
^ Support the engine.
^ Remove the 4 bolts.
6. Remove the engine mount.
^ Remove and discard the 2 bolts.
Installation
1. Install the engine mount.
^ Clean the component mating faces.
^ Tighten the new bolts to 45 Nm (33 ft. lbs.), then a further 60 degrees.
2. Install the engine mount bracket.
^ Clean the component mating faces.
^ Tighten the bolts to 80 Nm (59 ft. lbs.).
^ Remove the engine support.
3. Connect the starter motor cable.
^ Tighten the nut to 10 Nm (7 ft. lbs.).
^ Install the terminal nut insulator.
^ Install the cover.
4. Install the exhaust manifold.
5. Connect the battery ground cable.
