Seat Temperature Control Module
>>
LH Rear Seat Heater Module

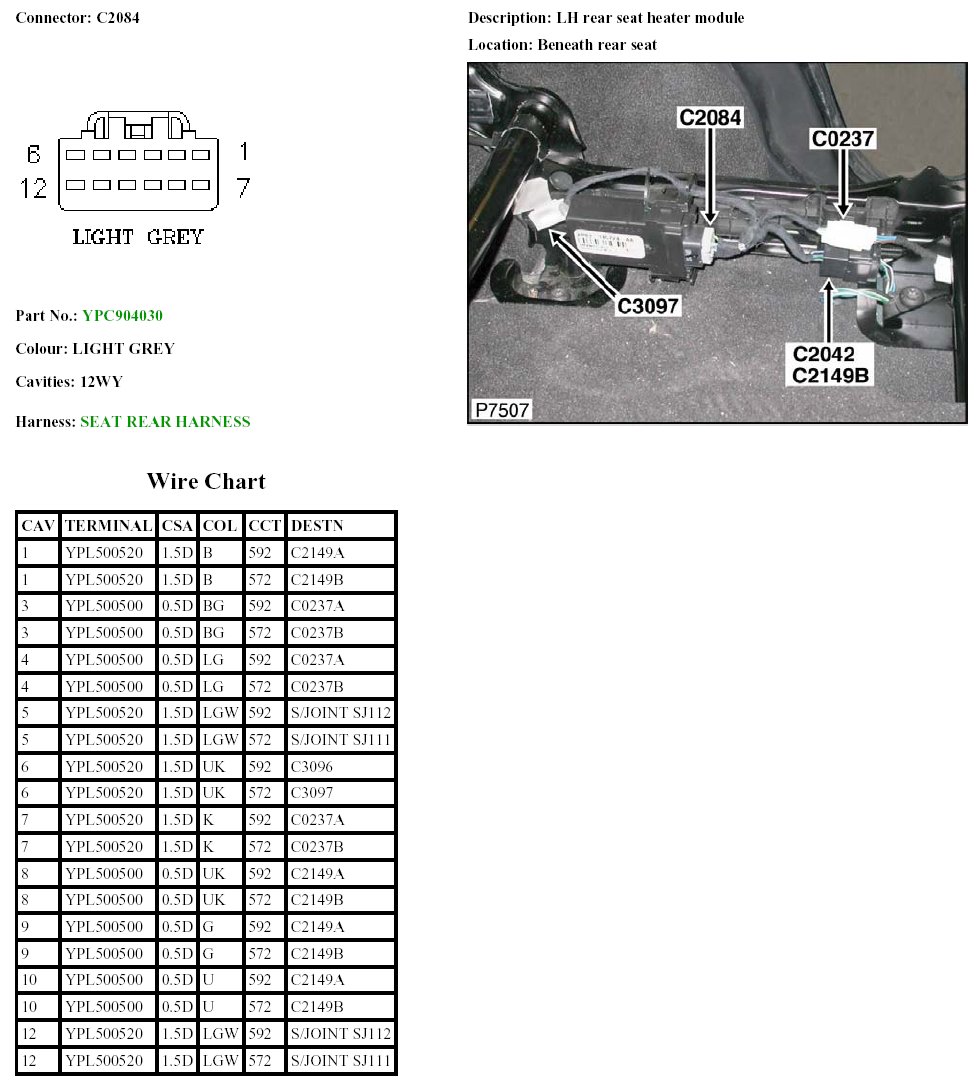

LH Rear Seat Heater Module
LH Rear Seat Heater Module
C2042:
C2084:
