Land Rover
>>
2005
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
Blower Motor
>>
Module-Blower-Motor Control-Rear
Module-Blower-Motor Control-Rear

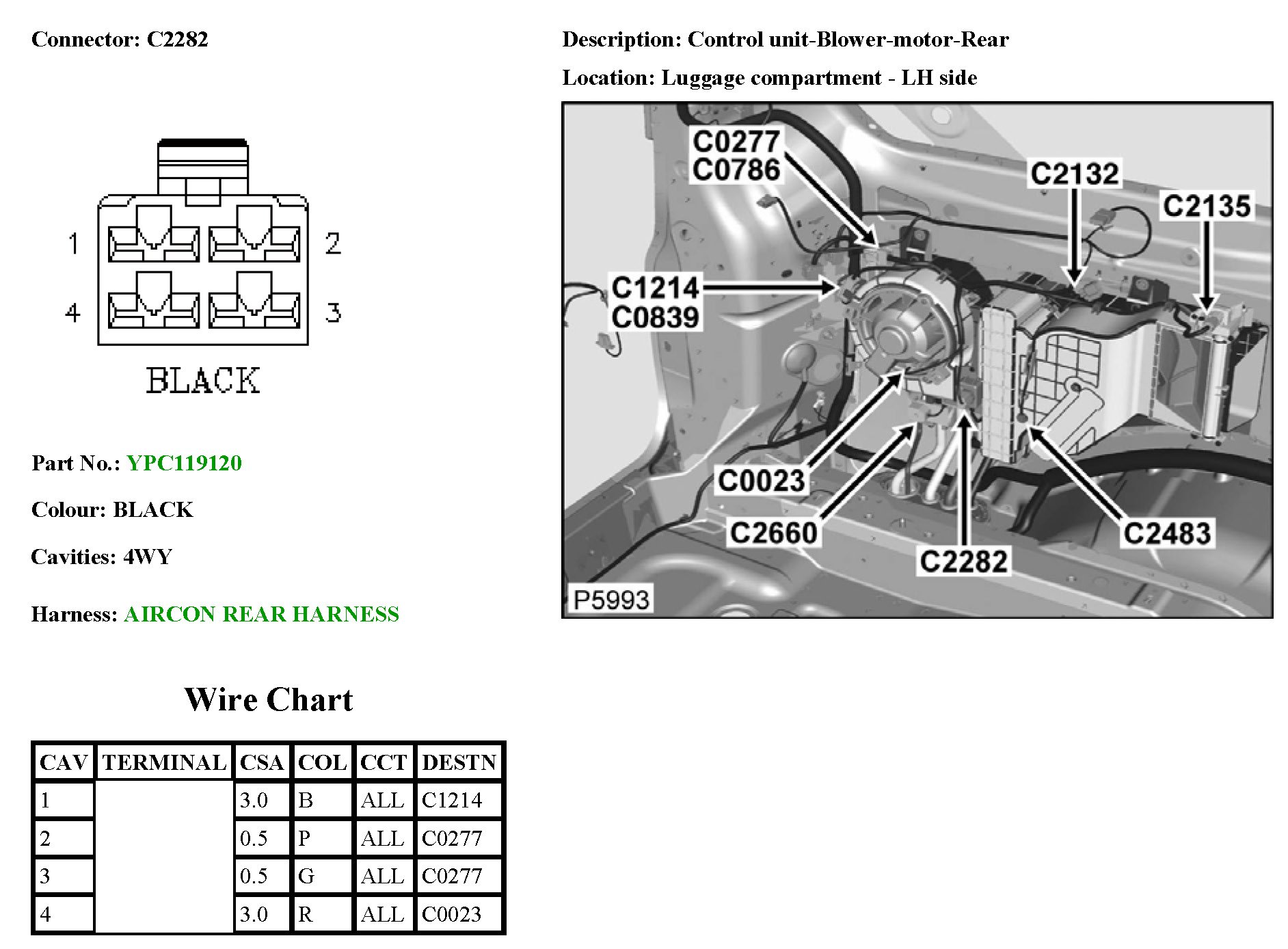

C2282:
