Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Land Rover
>>
2005
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C2701 - C2800
>>

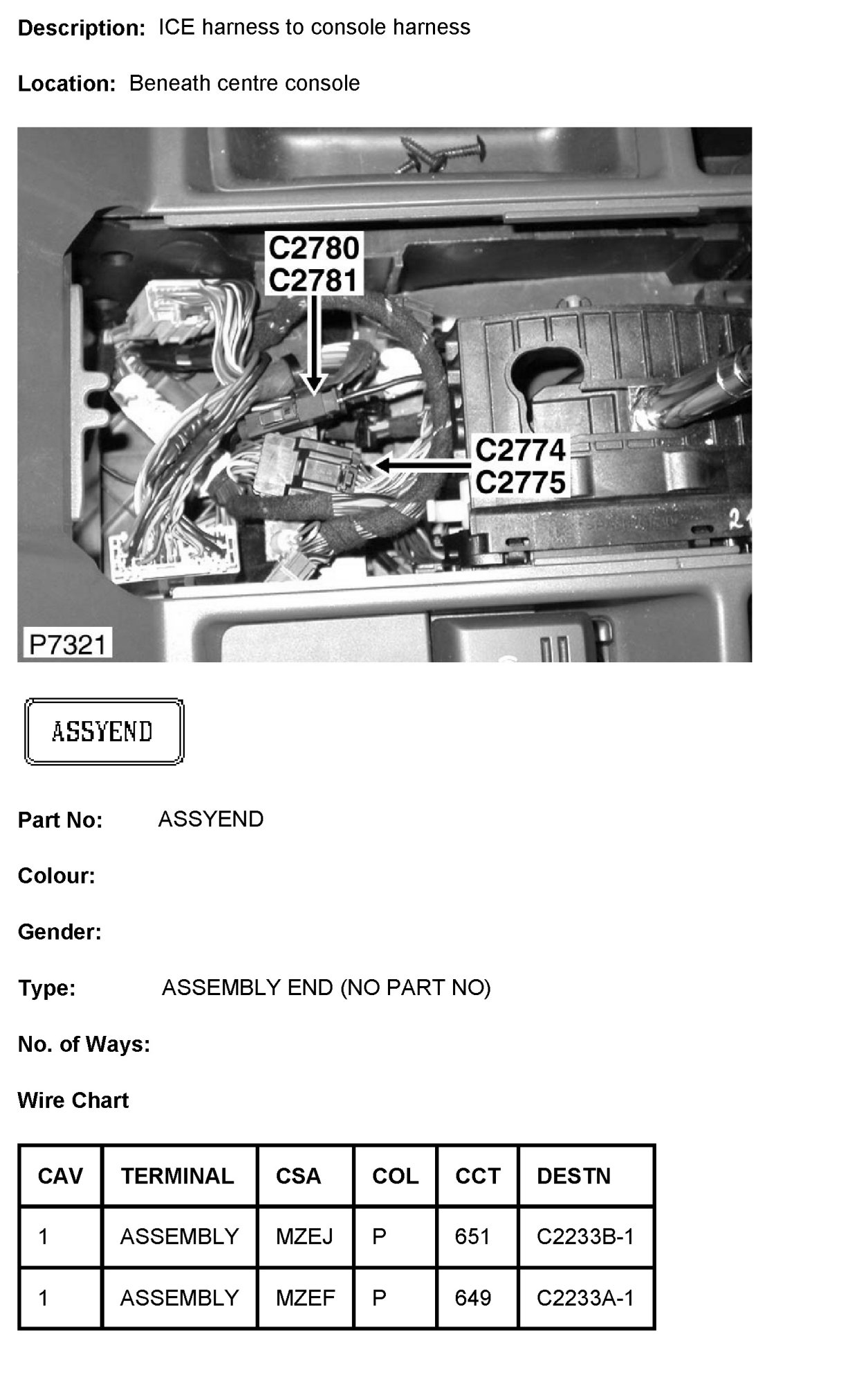

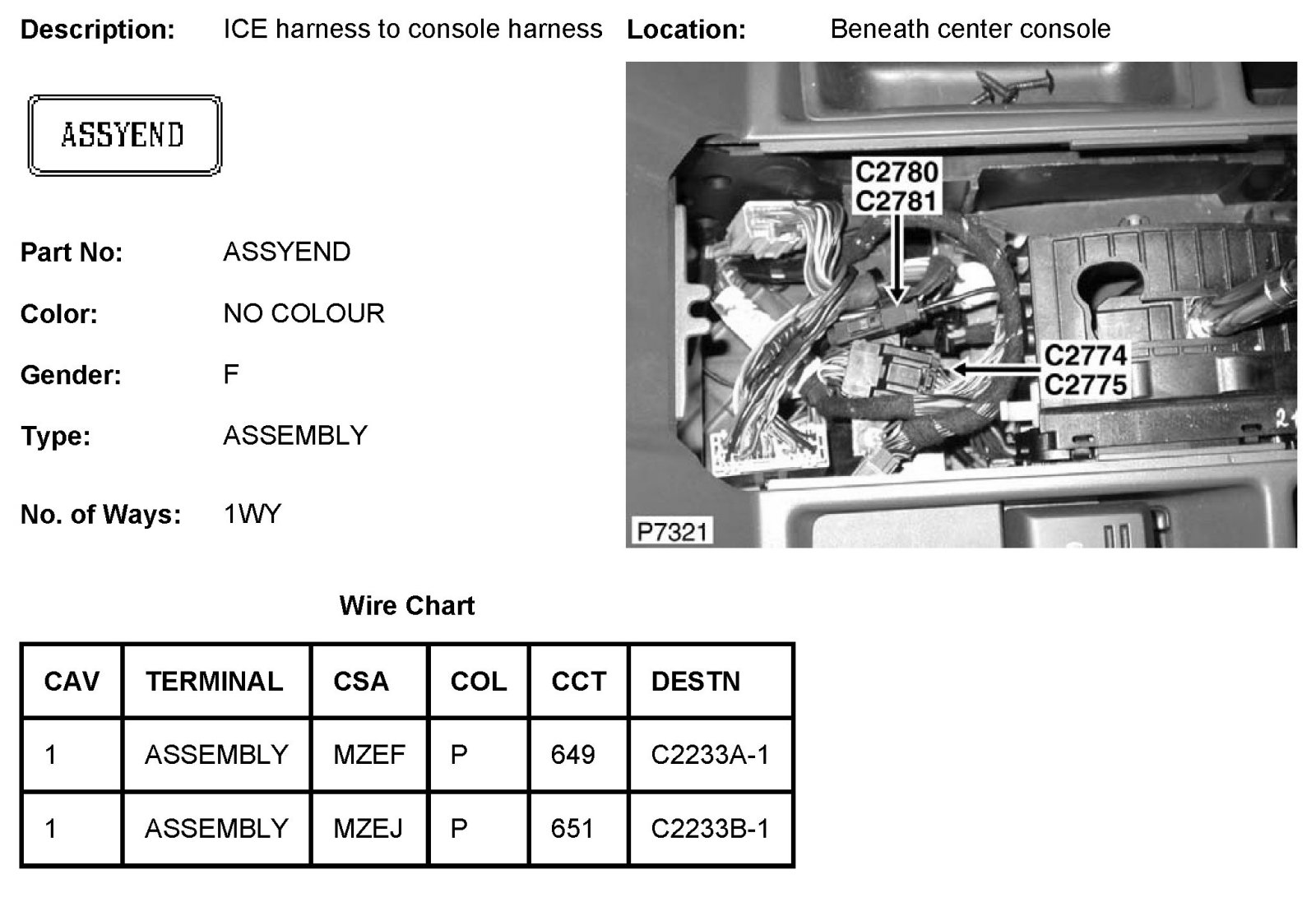

C2780
C2780
C2780:
C2780:
