Home
>>
Land Rover
>>
2005
>>
LR3 (LA) V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C0701 - C0800
>>

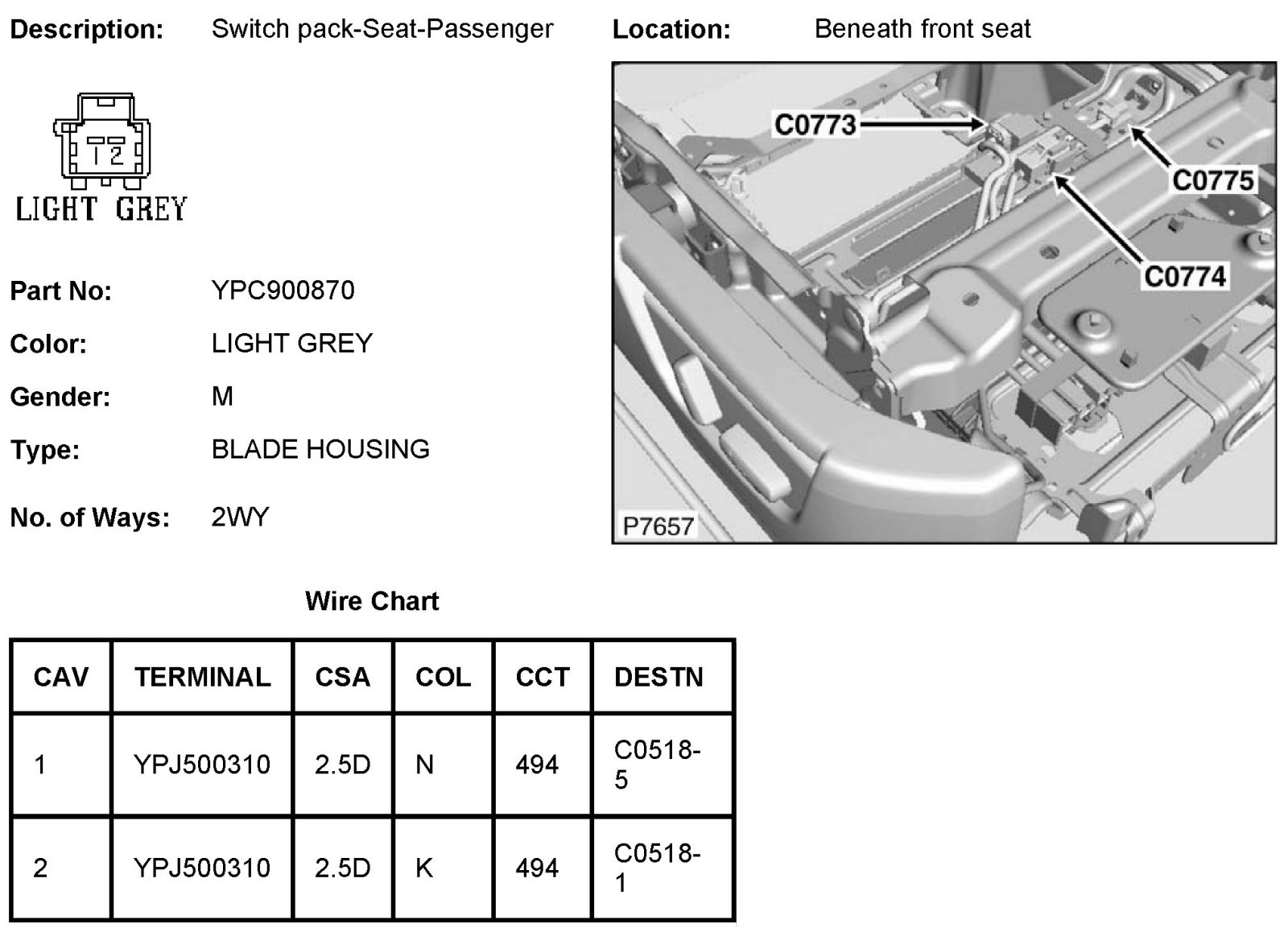

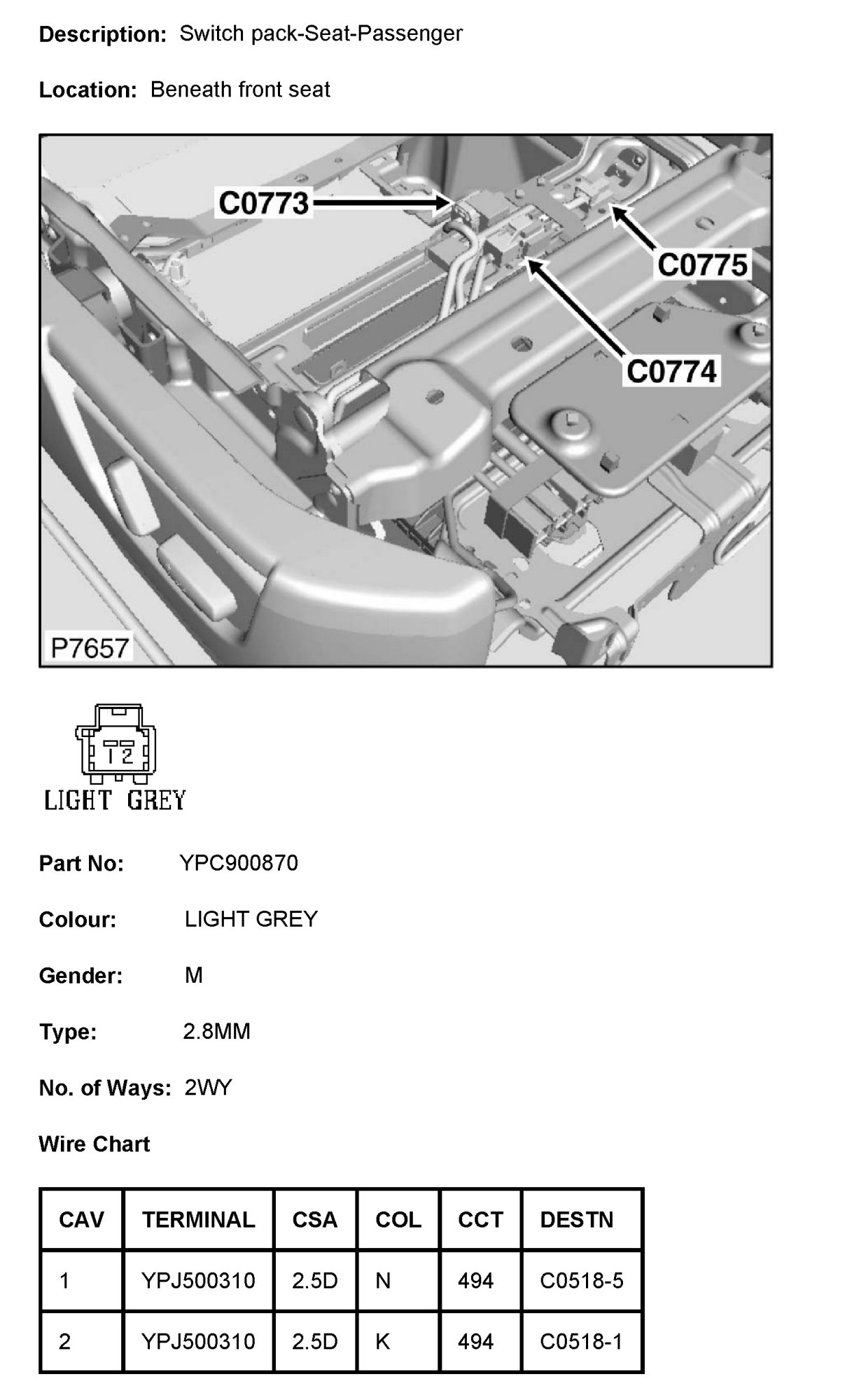

C0775
C0775
C0775:
C0775:
