Rear Differential Rear Mounting
Remove1. Raise rear of vehicle.
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

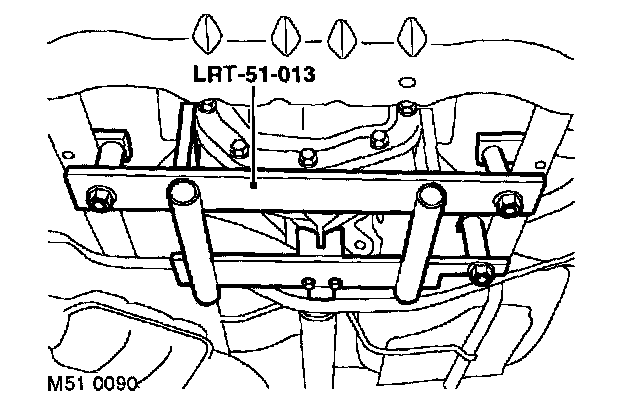

2. Position centralizing jig LRT-51-013 to align differential assembly.

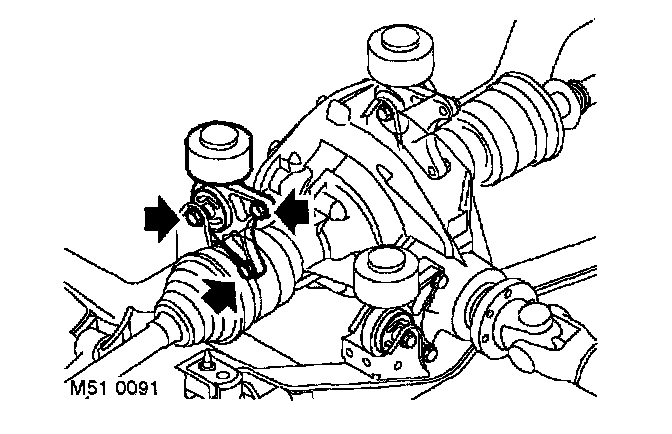

3. Remove bolt securing differential mounting to subframe.
4. Remove 2 bolts securing mounting to differential.
5. Remove mounting.
Refit
1. Position differential mounting.
2. Fit bolts securing mounting to differential and tighten to 65 Nm (48 ft. lbs.).
3. Fit bolt securing mounting to subframe and tighten to 120 Nm (89 ft. lbs.).
4. Remove LRT-51-013.
5. Remove stands and lower vehicle.
