86.50.51 Sub-Woofer Assembly

86.50.51 Sub-Woofer Assembly

Remove

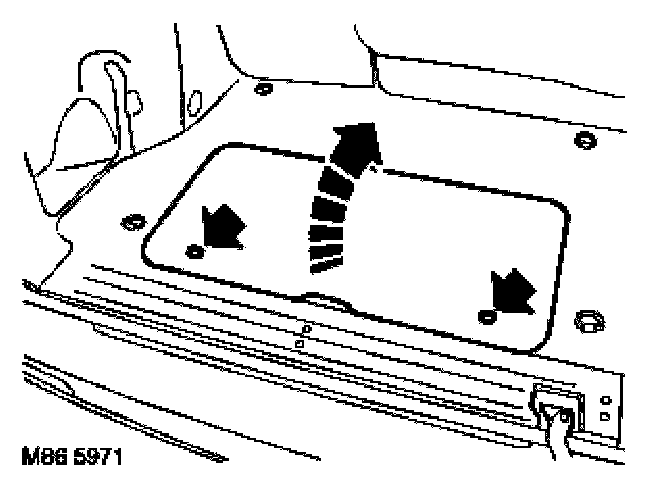

1. Release 2 turnbuckles and raise luggage compartment companion box lid.

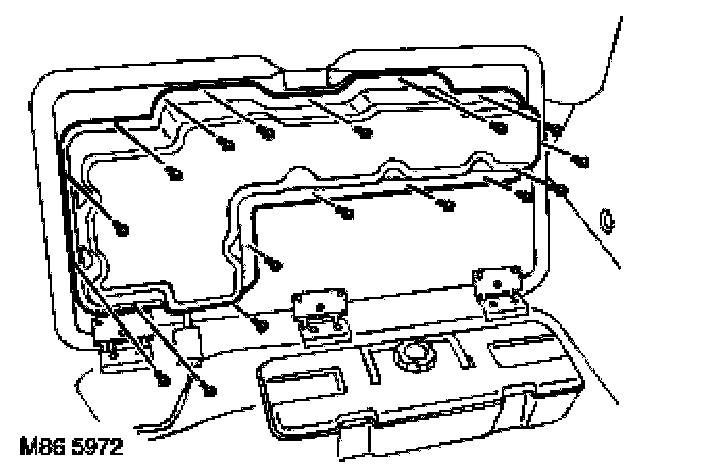

2. Remove 16 screws securing sub-woofer cover and remove the sub-woofer cover.

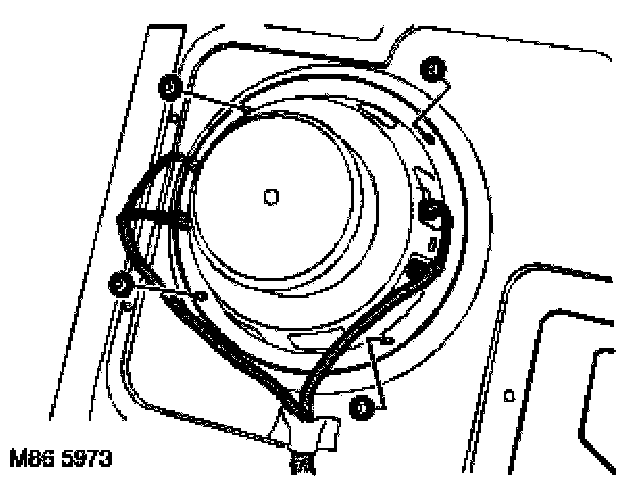

3. Identify position of Lucars for refitting and disconnect 4 Lucar connectors from the sub-woofer.
4. Remove 4 nuts securing sub-woofer and remove the sub-woofer.

Refit
1. Fit sub-woofer and tighten nuts to 2 Nm (1.5 lbf.ft).
2. Connect Lucar to sub-woofer.
3. Fit sub-woofer cover and secure with screws.
4. Close companion box and secure with turnbuckles.
