Seal-Driveshaft-LH
Remove1. Remove LH drive shaft.
2. Carefully remove and discard oil seal, take care not to damage oil seal recess.
Refit
1. Clean oil seal recess
CAUTION: Oil seal is waxed on outer diameter and must not be lubricated before fitting.

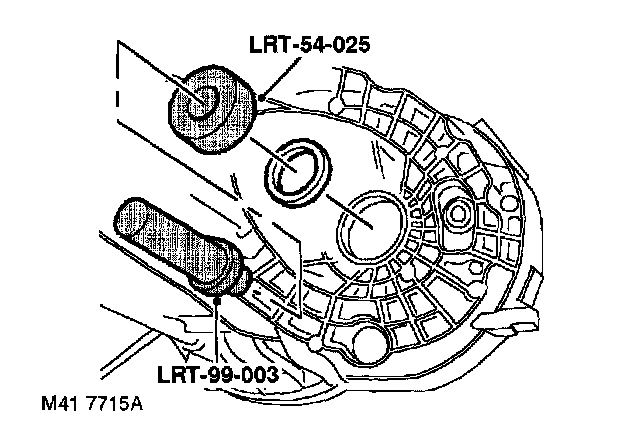

2. Models with manual gearbox: Using LRT-54025 and LRT-99-003, fit new oil seal.
3. Models with automatic gearbox: Using LRT44-027, fit new oil seal
4. Fit LH drive shaft.
5. Top-up gearbox fluid level.
