Bush - Trailing Link

Bush - Trailing Link
Remove
1. Raise rear of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel.





3. Remove nut and bolt securing trailing link to rear hub, collect spacer from under bolt head.
4. Release trailing link from hub and tie aside.

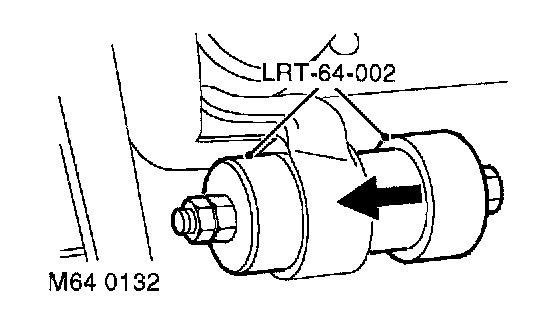

5. Using LRT-64-002 remove trailing link bush from hub.

Refit
1. Ensure bush bore in hub is clean.





2. Using LRT-64-002 fit new bush into hub.
3. Align trailing link to hub, fit nut and bolt but do not tighten at this stage.
4. Support weight of vehicle with jack under rear hub.

CAUTION: Nuts and bolts must be tightened with weight of vehicle on suspension.

5. Fit spacer, nut and bolt to trailing link and tighten to 120 Nm (89 ft. lbs.).
6. Fit road wheel(s) and tighten nuts to 115 Nm (85 ft. lbs.).
7. Remove stands and lower vehicle.
8. Check and, if necessary, adjust wheel alignment.
