Air Door Actuator / Motor: Service and Repair

Servo - Air Recirculation

Service Repair No - 80.10.18

Remove
1. Remove glove box.

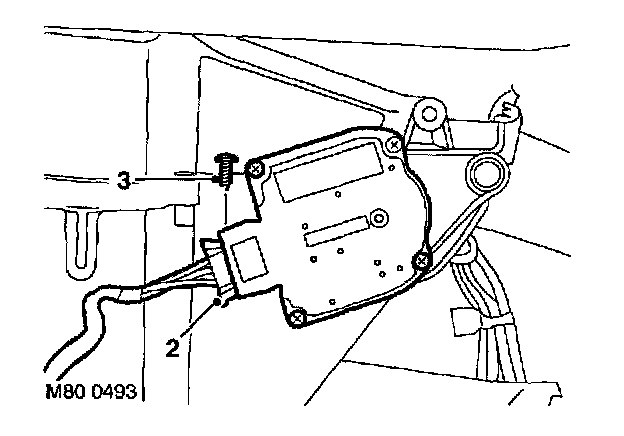

2. Disconnect multiplug from servo.
3. Remove screw securing servo to evaporator and remove servo.

Refit
1 Fit servo to evaporator and secure with screw.
2. Connect multiplug to servo.
3. Fit glove box.
