Gasket-Inlet Manifold-LH

Gasket - Inlet Manifold - LH

Service Repair No - 30.15.08

Remove
1. Disconnect battery earth lead.
2. Drain cooling system.
3. Remove fuel rail.

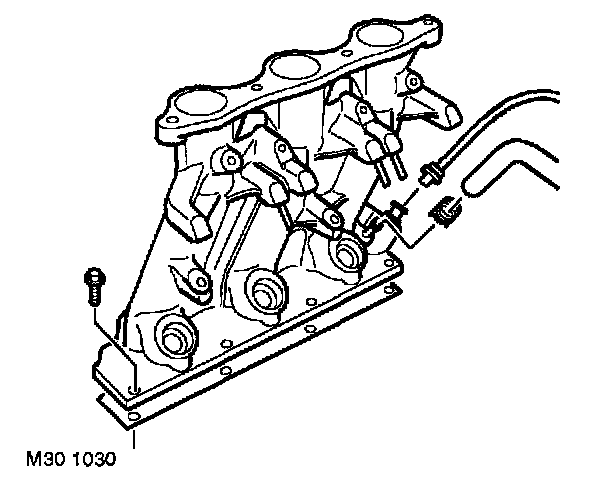

4. Depress locking collar and release breather hose from LH inlet manifold.
5. Release clip and disconnect coolant hose from LH inlet manifold.
6. Progressively loosen and remove 7 bolts securing LH inlet manifold to cylinder head.
7. Remove inlet manifold and discard gasket.

Refit
1. Clean inlet manifold and cylinder head mating faces.
2. Fit new inlet manifold gasket to cylinder head, position inlet manifold, fit and tighten bolts to 25 Nm (18 ft. lbs.).
3. Connect breather hose to LH inlet manifold.
4. Connect coolant hose to inlet manifold and secure clip.
5. Fit fuel rail.
6. Fill cooling system.
7. Connect battery earth lead.
