Hydramount-Engine-RH

Hydramount-Engine-RH

Service Repair No - 12.45.12

Remove
1. Remove top arm.

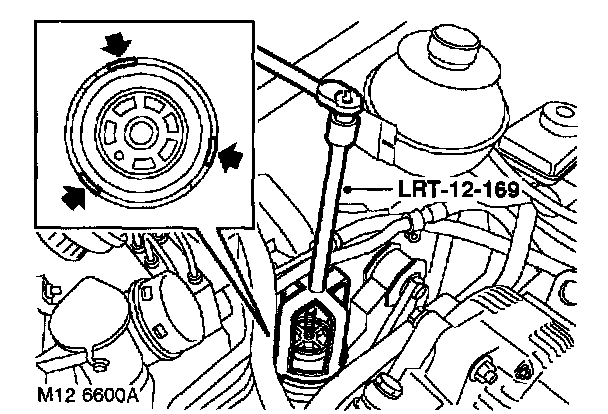

2. Position 3 pegs on LRT-12-169 into 3 slots in hydramount.
3. Connect a suitable socket bar to LRT-12-169, loosen and remove hydramount and LRT-12169.

Refit
1. Clean hydramount and body mating faces.
2. Position hydramount to body.
3. Position 3 pegs on LRT-12-169 into 3 slots in hydramount.
4. Tighten hydramount to 85 Nm (63 ft. lbs.).
5. Fit top arm.
