Engine Steady-Lower

Engine Steady-Lower

Service Repair No - 12.45.17

Remove
1. Remove underbelly panel.

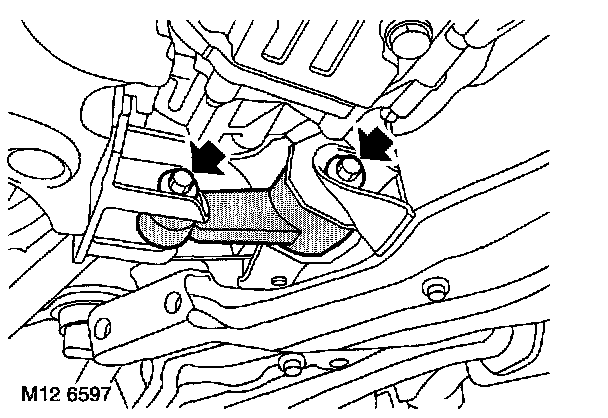

2. Remove 2 bolts securing lower engine steady to sump bracket and subframe.
3. Remove lower engine steady noting that 'TOP' mark on engine steady faces uppermost.

Refit
1. Position lower engine steady, 'TOP' mark uppermost. Fit and tighten bolts to 100 Nm (74 ft. lbs.).
2. Fit underbelly panel.
