Hose - Front - Primary - LH

Hose - Front - Primary

Service Repair No - 70.15.02

Remove
1. Raise front of vehicle.

WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

2. Remove road wheel(s).





3. Loosen brake pipe union to hose and release union.

CAUTION: Always fit plugs to open connections to prevent contamination.

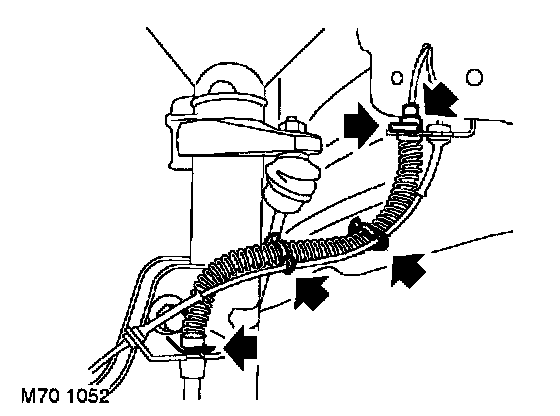

4. Remove 2 clips securing hose to valance and damper bracket.
5. Release clips securing ABS sensor lead to brake hose.

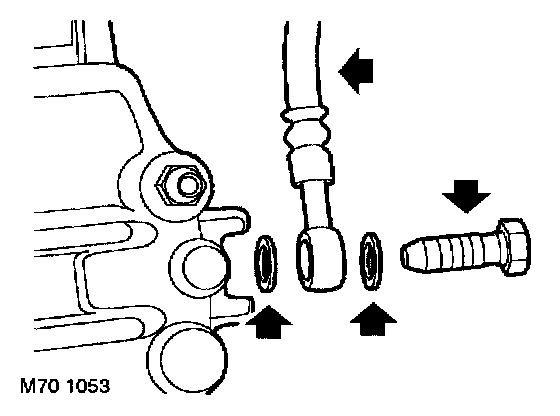

6. Remove banjo bolt securing brake hose to caliper and collect sealing washers.
7. Remove brake hose and plug brake caliper.

Refit
1. Remove plugs and clean brake pipe male end.
2. Position hose to support brackets and secure with clips.
3. Clean banjo bolt, hose and caliper mating faces.
4. Using new sealing washers, align hose to caliper, fit banjo bolt and tighten to 28 Nm (21 ft. lbs.)
5. Align hose to brake pipe and tighten union to 17 Nm (12 ft. lbs.).
6. Secure ABS sensor lead to brake hose.
7. Bleed brakes.
8. Fit road wheel(s) and tighten nuts to 115 Nm (85 ft. lbs.).
9. Remove stand(s) and lower vehicle.
